10.1” 4CH 1080P DVR Monitor with Smartphone Interconnection
| 1. Monitor Features | |

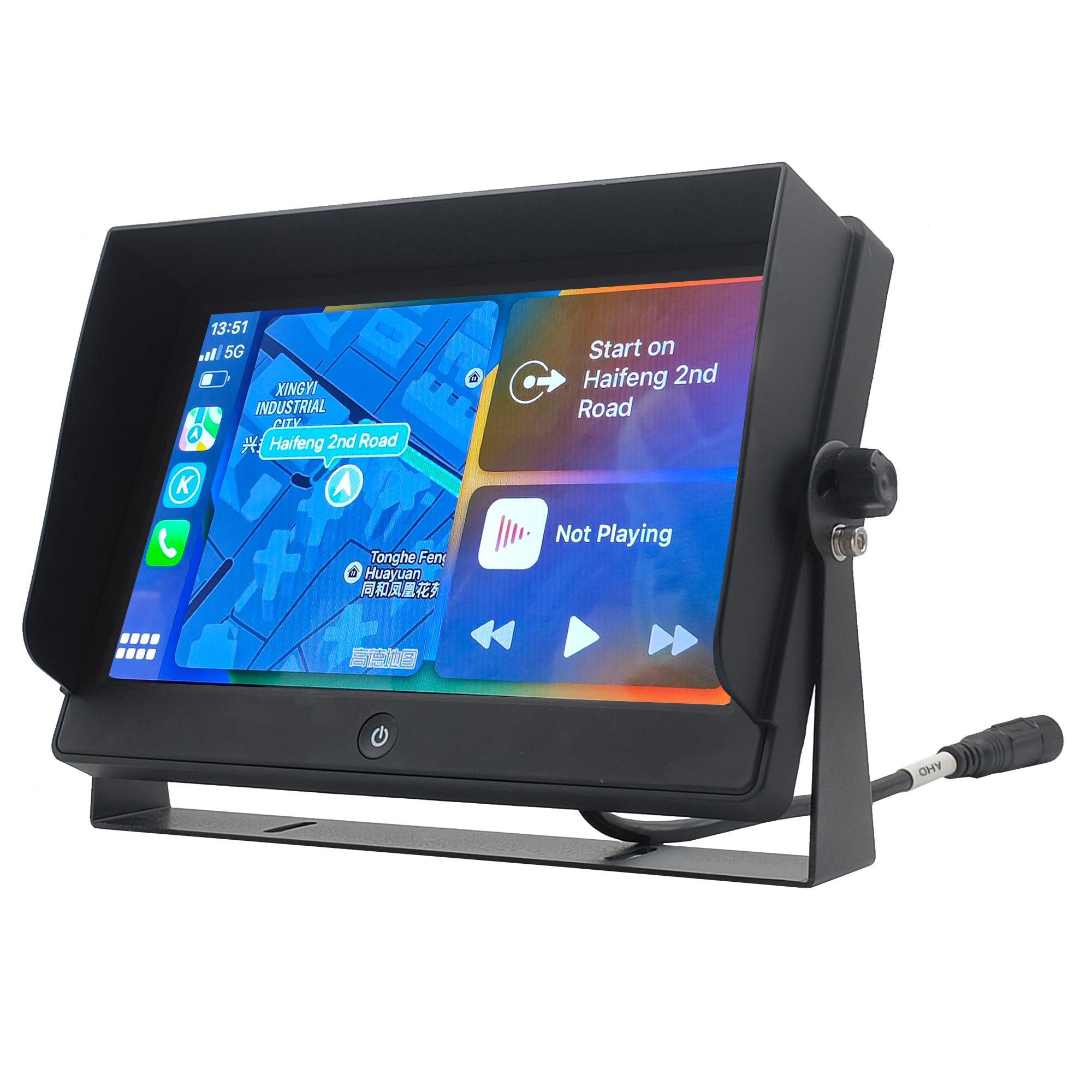

| 1.10.1 inch high-definition display 2. 4CH 1080P video signal input and recording, 1CH audio input (CH1), 4CH trigger control 3. Support mixed input for AHD 1080P/720P/CVBS 4. PAL/NTSC automatically 5. Support 1CH wireless carplay navigation |
|
| Product Parameters | |
| Specification | Model No.：EV-1026MY |
| Screen ratio | 16:9 |
| Screen resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | UP—85°，DOWN—85°，LEFT—85°，RIGHT—85° |
| Operating method | Full touch screen |
| OSD control |

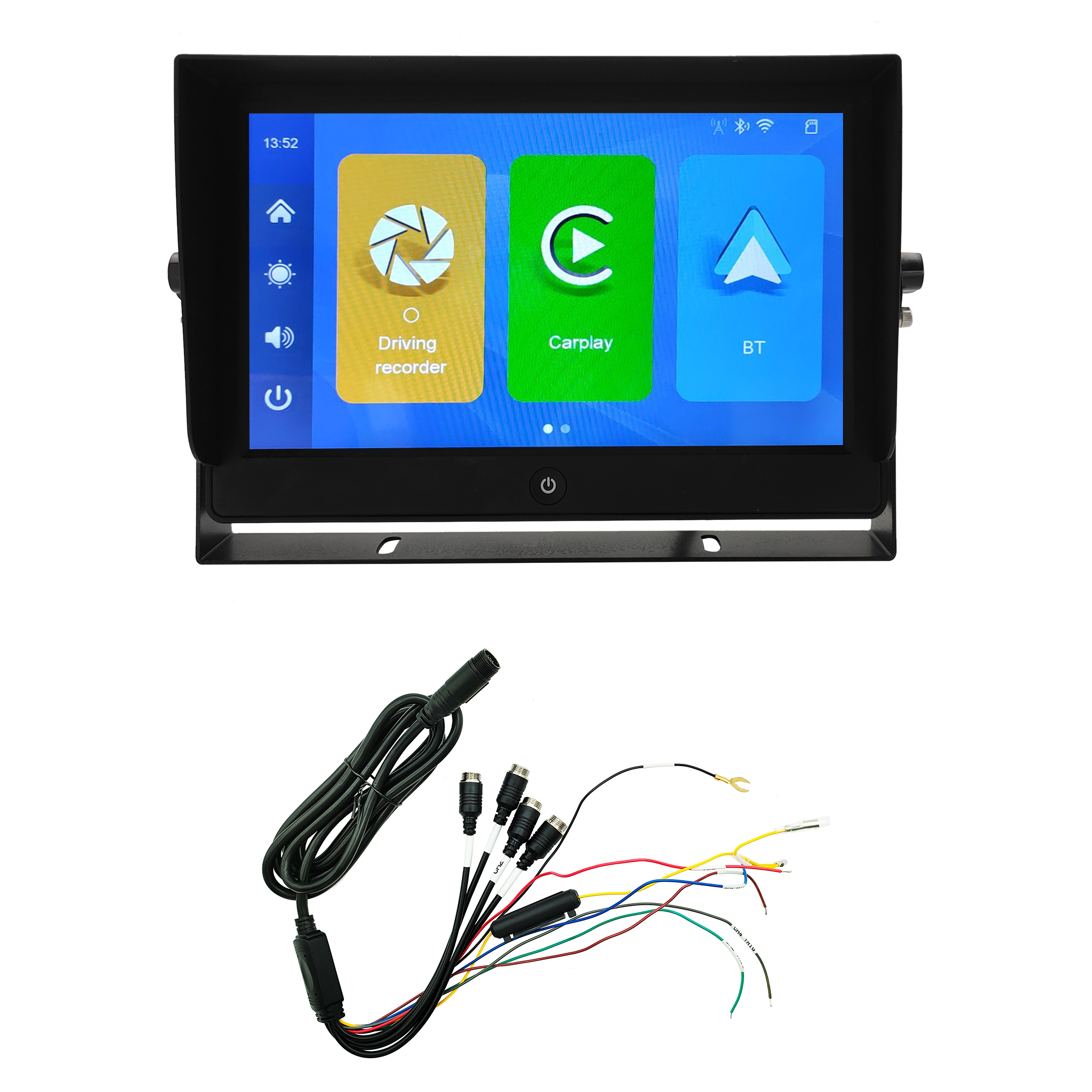

Dash cam, carplay, FM emission, settings, Bluetooth, brightness, volume |
| Signal input | 4CH AHD 720P/720N/1080P/1080N |
| Recording | Support SD card recording |
| SD card | Support 32G-256G, Class 10 and above |
| Video compression format | H.264 |
| Recording resolution | 720P\1080P |
| Reccording playback | Single image playback from the monitor or computer |
| File format | TS |
| File size | 720P (1 minute) ≈ 31MB 1080P(1 minute) ≈ 50MB 1 minute, 3 minutes or 5 minutes optional |
| System language |
Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Russian, German, French, Thai, Czech, Portuguese, Polish, Dutch, Turkish |

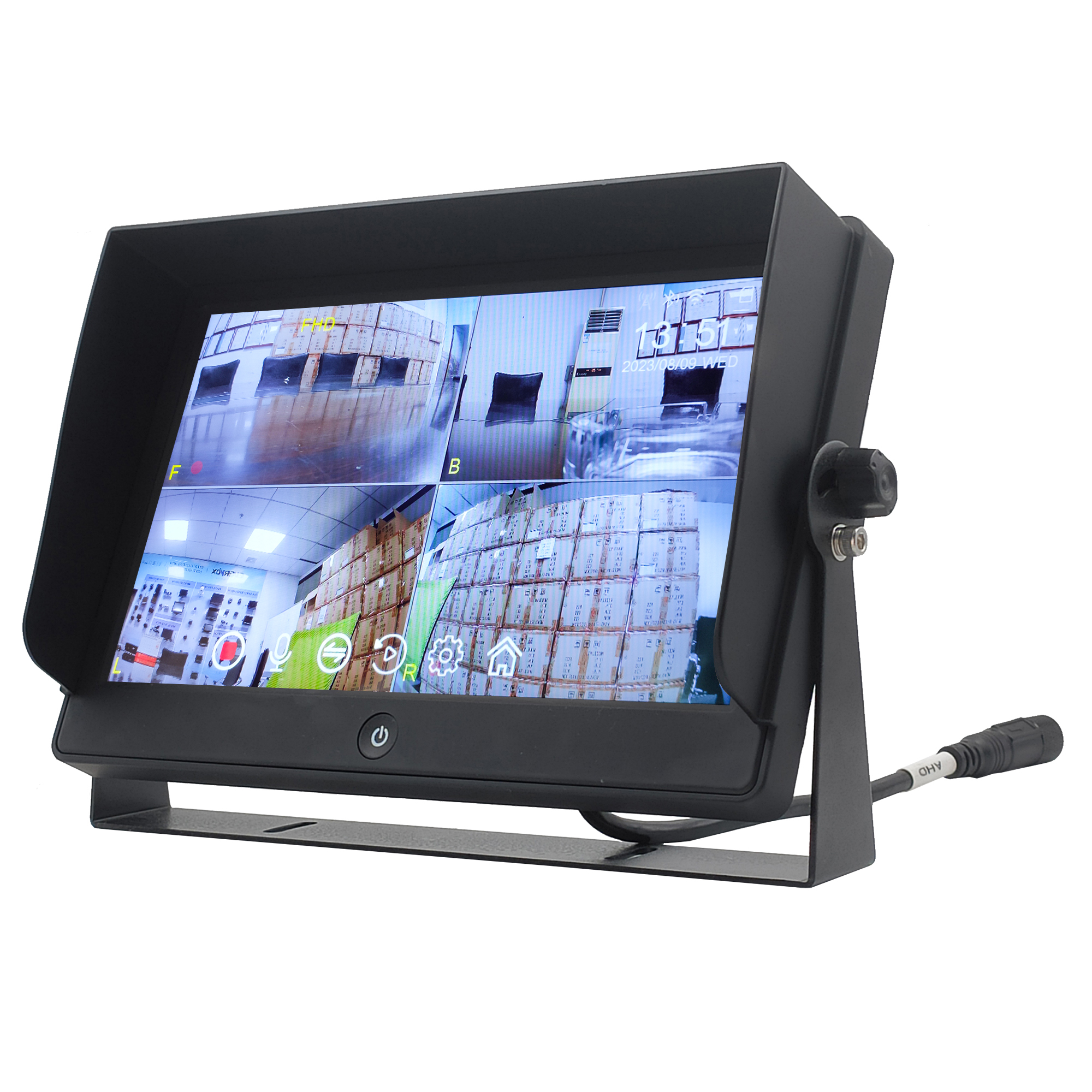

| Image display | Support 1/2/3/4 images display adjustable |
| Parking line | Support customzied size and position for parking line |

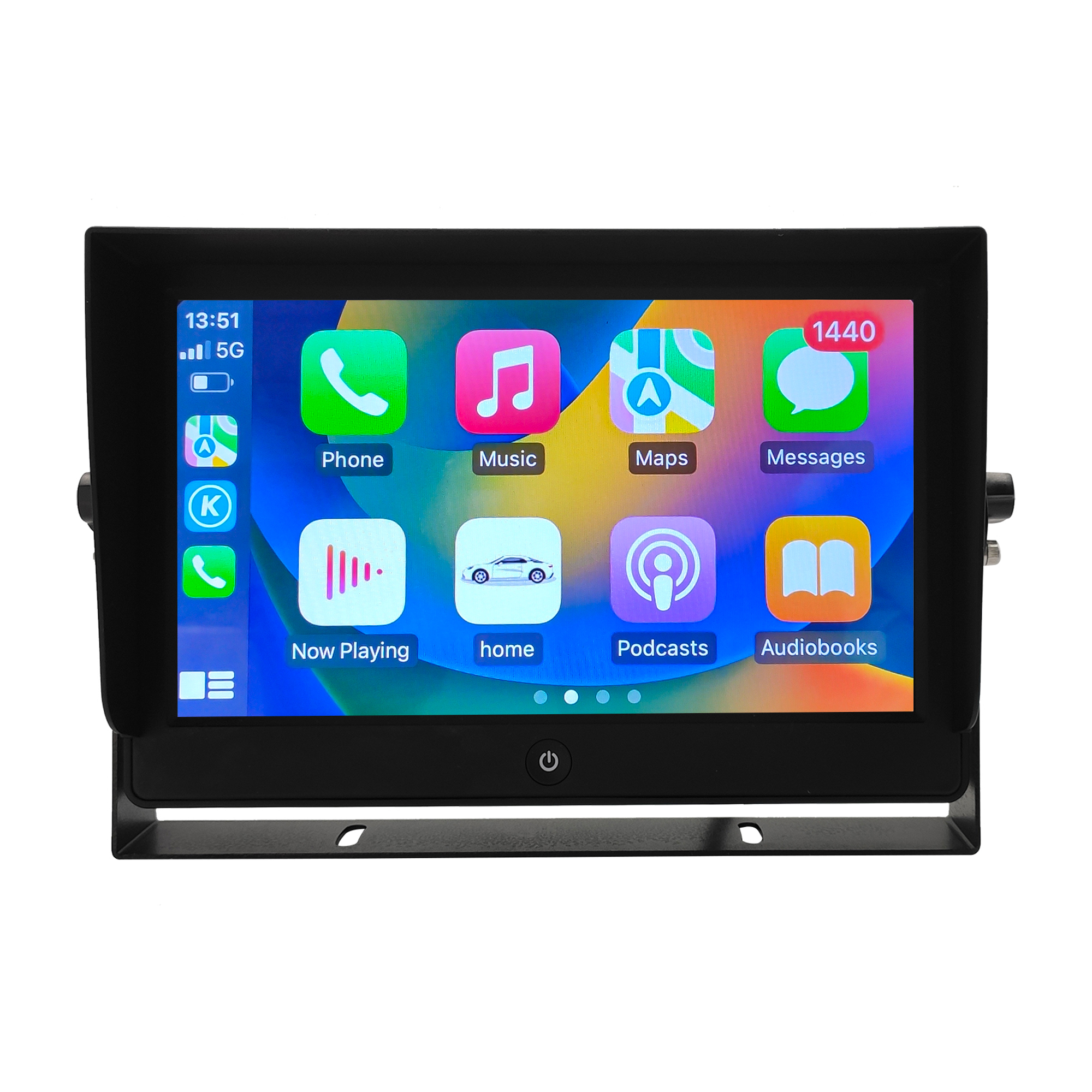

| Mobile interconnection |
Supports IOS 12 and above systems, but not iPhone 6 and below. Support Android Auto Overseas Edition |
| Channel image setting | Support flip and mirror setting for each channel |
| Shockproof | 4G |
| Audio |
Built in high sensitivity MIC, supporting high fidelity speakers for calls and carplay sound playing |
| Working temperature | -20℃~+70 ºC |
| Storage temperature | -30℃~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 9-36V |
| Power | DC12V≈5W not including LCD, camera |
| Current consumption | DC12V≈400MA , without cameras |
| Booming time | 4s |
| Speaker | 8Ω2W*1 |
