| Features |
| |
|
| 1. 4-channel AHD HD input with various formats. |
|
| 2. 3-channel intelligent BSD blind spot alarm, adjustable detection area size. |
|
| 3. Intelligent voice-controlled AI screen switching. |
|
| 4. ACC power-off memory, real-time video recording without frame loss. |
|
| 5. 10-inch 1024*600 IPS BOE high-brightness screen. |
|
| 6. Adjustable brightness, saturation and contrast. |
|
| 7. Supports up to 256G SD card. |
|
| 8. Wide voltage power supply 12-24V. |
|
| 9. 1-channel front view with microphone recording. |
|
| 10. Independent mirror image setting for single channel. |
|
| 11. Built-in speaker. |
|
| II. Product Specifications: |
| Specification |

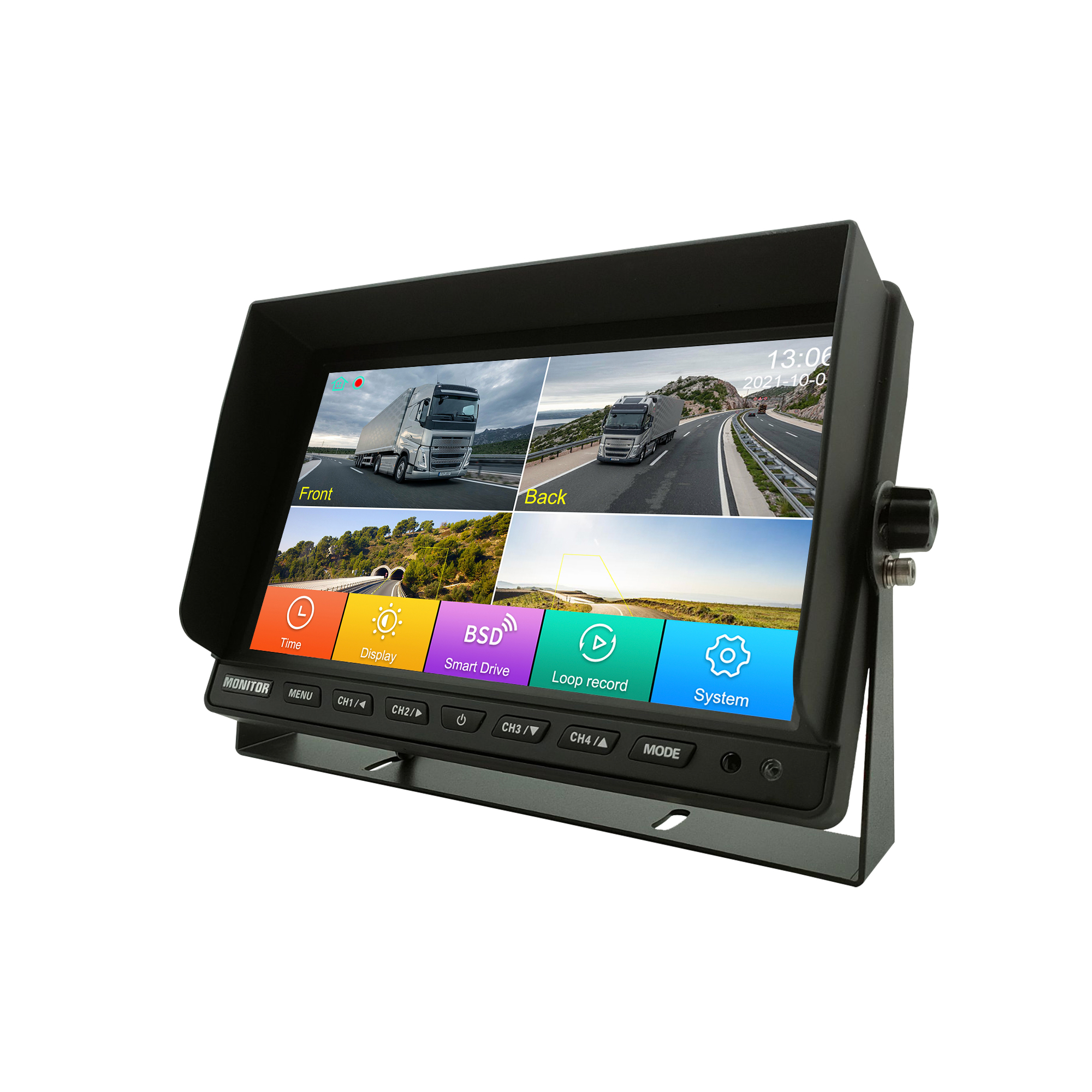

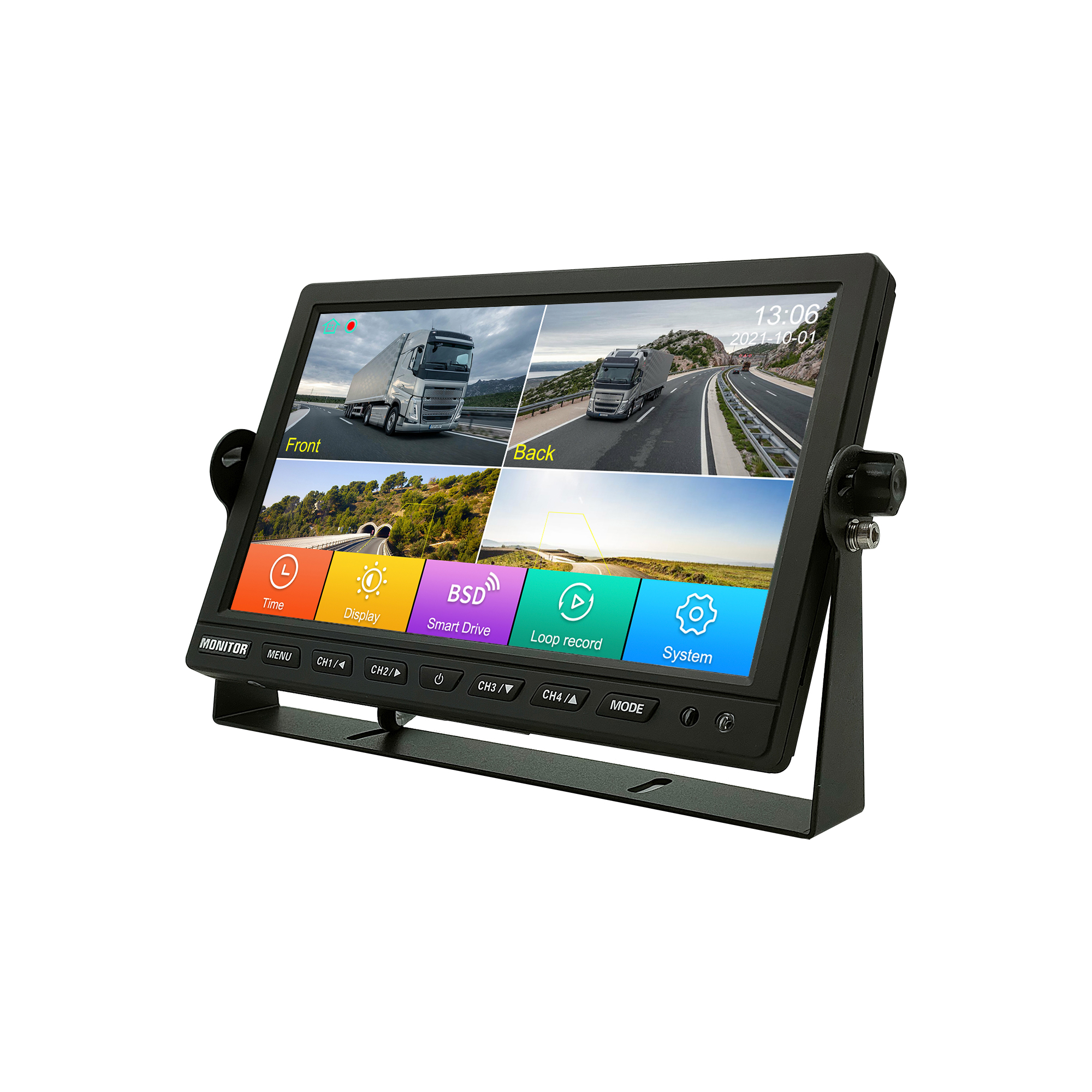

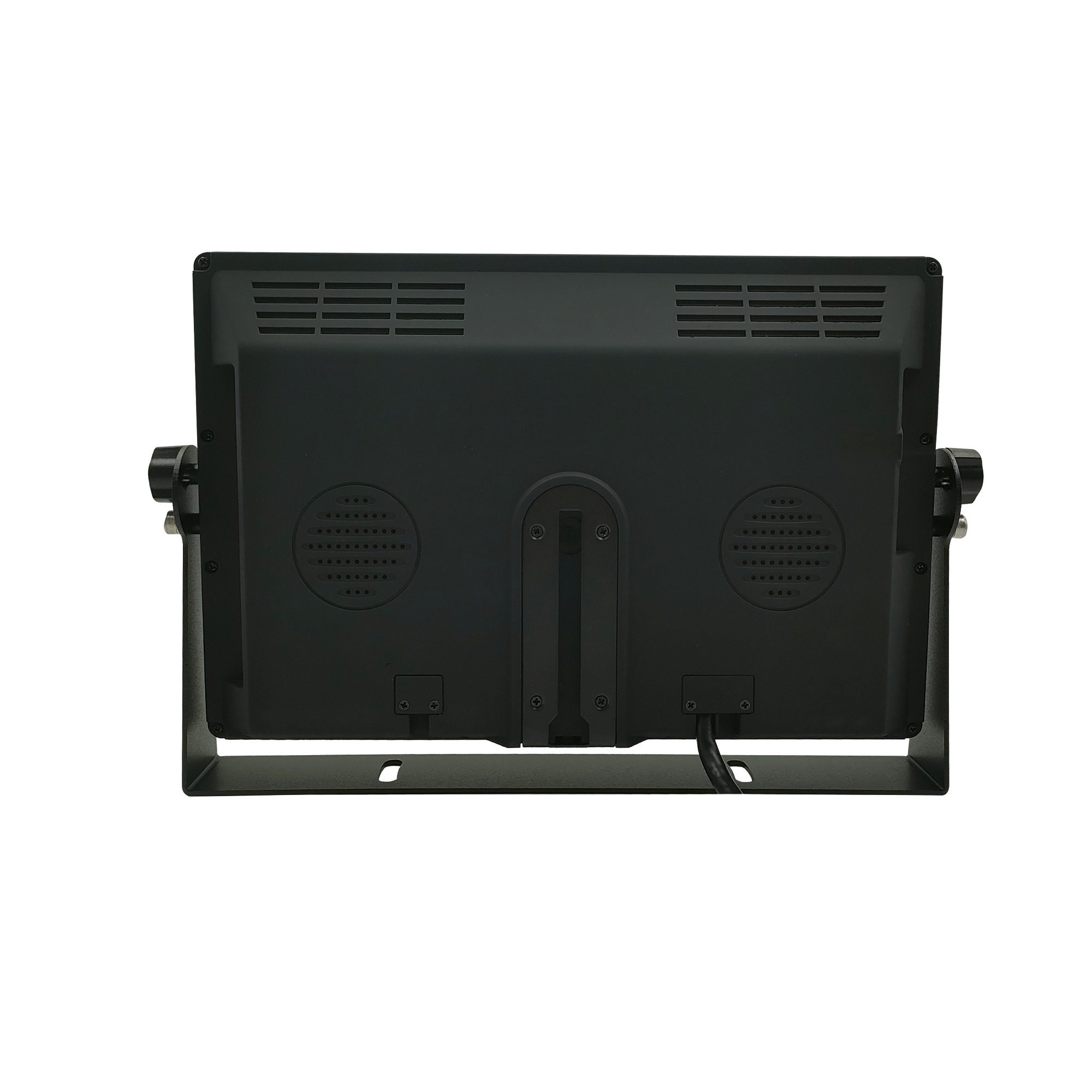

Model: EV-1010MHQ-DVR |
| Aspect Ratio |
16:9 |
| Screen Resolution |
1024*R.G.B*600 BOE |
| Backlight |
LED, Brightness 400 cd/m² |
| Contrast Ratio |
500:1 |
| Viewing Angle |
Up—85°, Down—85°, Left—85°, Right—85° |
| Operation Method |
Full-screen touch / button control |
| OSD Control |
Time setting, brightness adjustment, intelligent driving, loop recording, system setting |
| Power Consumption |
Normal operation < 11.4W |
| Signal Input |
AHD 720P/720N/1080P/1080N format video input; (mixed connection not supported) |
| Recording Function |
With video recording |
| SD Card Storage |
Supports 8-256G high-speed card |
| Video Compression Format |
H.264 compression mode |
| Recording Resolution |
1200*720 |
| Playback |
Single-channel playback |
| File Format |
ST |
| File Size |
Approx. 7.24M per minute (720/1080) |
| System Language |
Chinese, English, Japanese, Korean |
| Display Screen |
Voice control, double-tap touch screen, button switching |
| Trigger Control |
4-channel reverse trigger control, with guide line function |
| Intelligent Driving BSD |
3 channels: left, right, rear |
| Anti-vibration Level |
4G |
| Audio |
Front view recording |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Operating Humidity |
85%RH |
| Power Requirement |
12-24V |
| Boot-up Time |
5s |
| Current Consumption |
TYPE: 12V/900mA (4 channels) |
| Built-in Speaker |
Yes |
| Weight |
|
| Dimensions |
|
