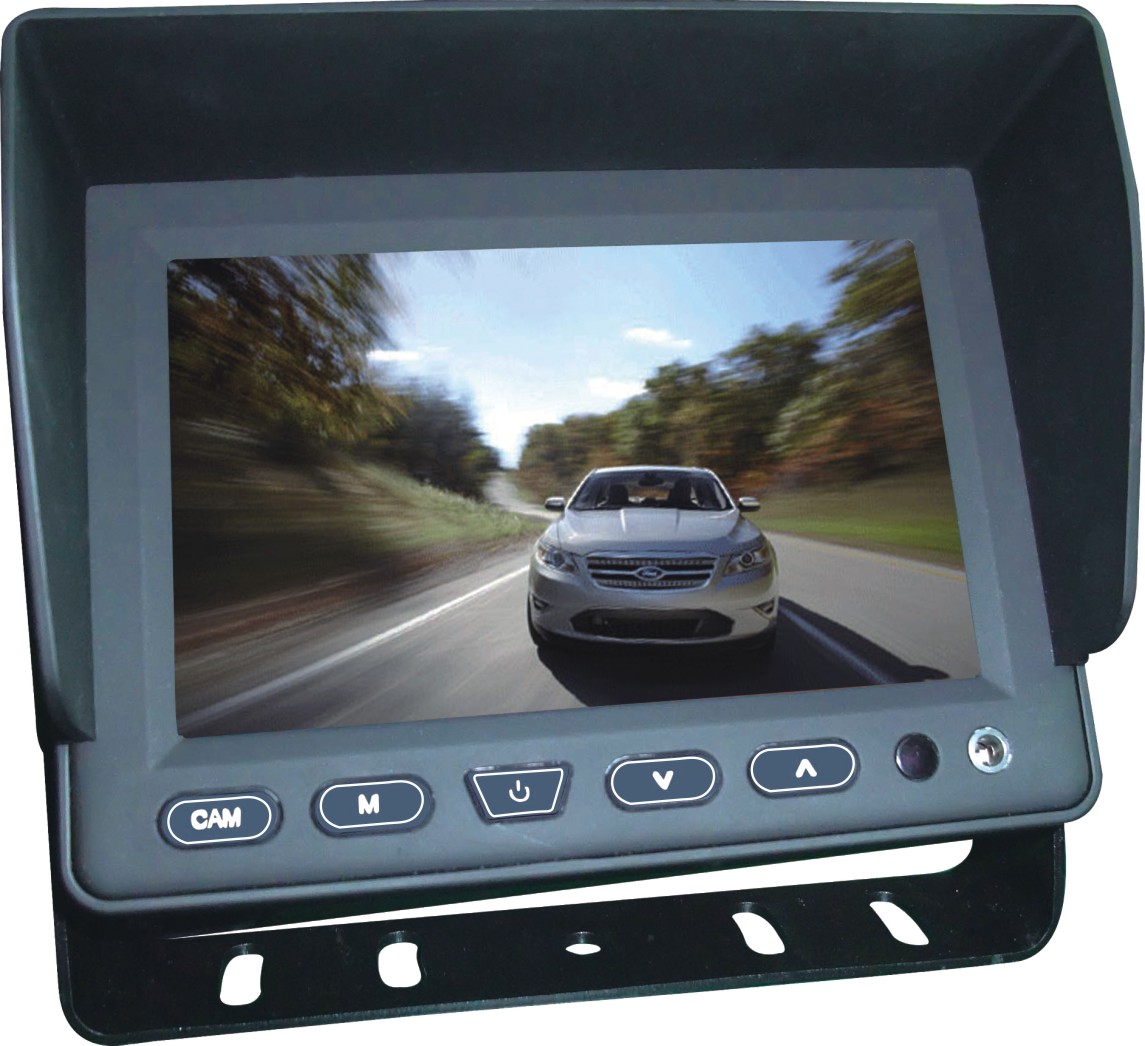

5" AHD CAR MONITOR
| Monitor Features | |
| 1. 800*480 IPS screen 12-24V 14P waterproof aviation connector 2. 3CH video input, 2CH(V1-V2) audio input, 3CH triggers, without AVIN 3. Support AHD 1080P/ 720P / CVBS input, PAL/NTSC automatically 4. OSD menu: image display, reversing delay , image mode , system setting 5. 2 seconds for boot time , 3 seconds for switching channel, 3 seconds for reversing image with monitor turned off |
|

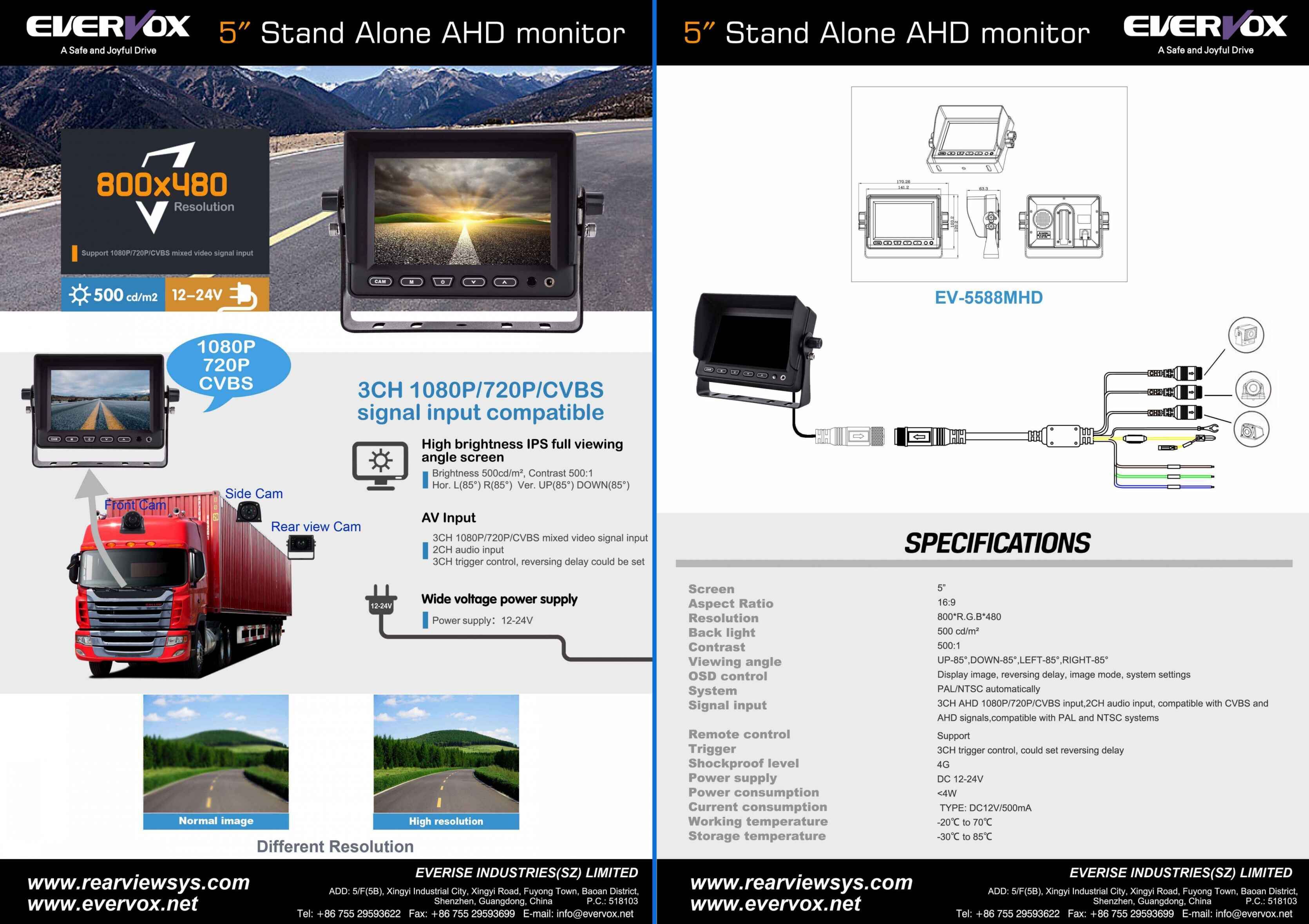

| Product Parameters | |
| Specification | Model：EV-5588MHD |
| Screen ratio | 16:09 IPS |
| Screen resolution | 800*R.G.B*480 |
| Backlight | LED, brightness 500cd/㎡ |
| Video frame rate | 1080P: P25f/s/N30f/s |
| Contrast | 500:1 |
| Viewing angle | UP—85°，DOWN—85°，LEFT—85°，RIGHT—85° |
| Working temperature | -20~+70 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+85 ºC |
| Power supply | DC12-24V |
| Bootup time | 2S |
| Current consumption | TYPE:DC12V/500mA |
| OSD menu | Image display, reversing delay , image mode , system setting |
| Power consumption | ＜3W |
| Signal input | 3 channels 1080P/720P/ CVBS video input; Compatible with mixed input of CVBS and AHD ; Compatible with mixed input of PAL and NTSC |
| System language | Chinese, English, Traditional Chinese (multiple languages can be added) |
| Monitor display | 3CH single image display |
| Triggers | 3CH, reversing delay can be set |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
| Speaker output power | 32*2W |
| Size | 170*130*63mm |
