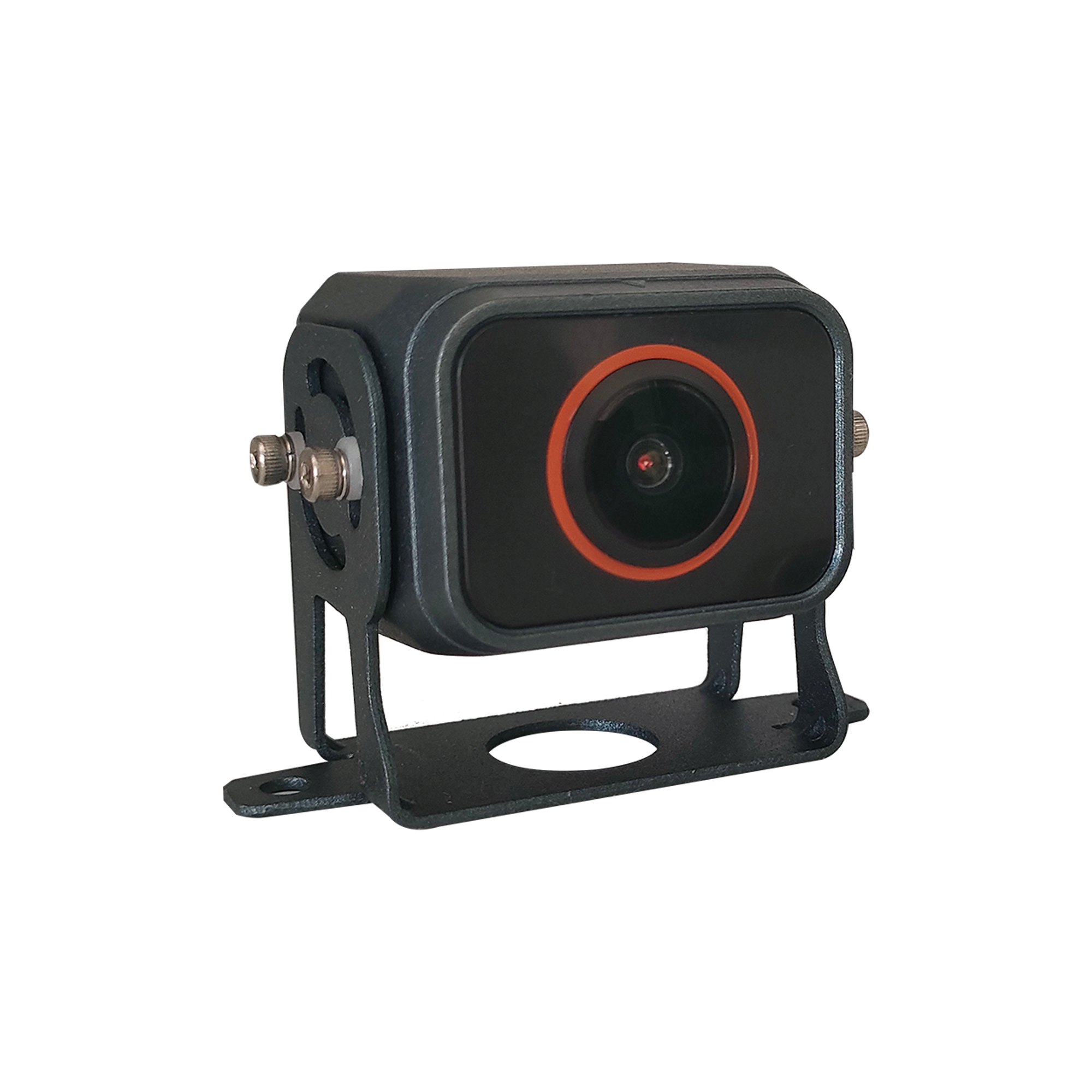

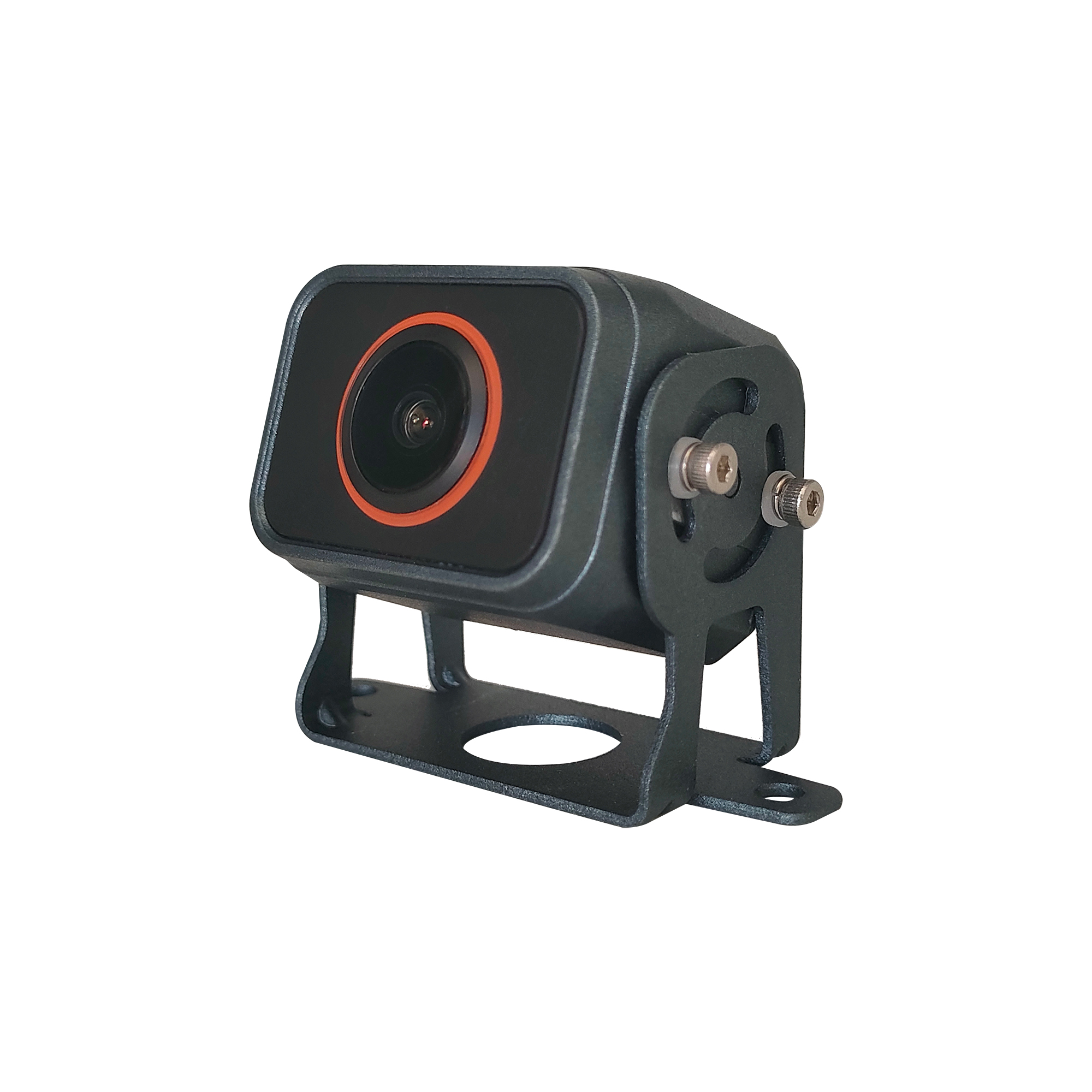

| Starlight Night Vision 1080P Backup Camera |
| Model No. |
EV-505HD |
| NO. |
Items |
Specification |
| 1 |
Image Sensor |
1/3" CMOS |
| 2 |
Resolution |
1920H*1080V |
| 3 |
White balance |
Automatic (no lights needed) |
| 4 |
Backlight compensation |
With |
| 5 |
Noise reduction |
3D DNR |
| 6 |
Viewing angle |
2.8mm lens, 95 degrees（horizontal viewing） |
| 7 |
SNR |
》52DB(AGC OFF) |
| 8 |
System |
PAL System (NTSC optional) |
| 9 |
Startlight night vision |
Support, without IR lights |
| 10 |
Audio |
Without as default (with optional ) |
| 11 |
Parking guideline |
Without as default (ON/OFF adjustable optional ) |
| 12 |
Image |
Mirror as default (Mirror and non-mirror adjustable optional) |
| 13 |
Video output |
1CH HD signal output |
| 14 |
Waterproof level |
IP69K |
| 15 |
Shockproof level |
4G |
| 16 |
Connector Type |
4PIN / RCA / Customized |
| 17 |
Working voltage |
Standard DC 9-12V （DC 24V optional） |
| 18 |
Power consumption |
About 1.5W |
| 19 |
Maximum current |
155MA (12V) |
| 20 |
Working temperature |
-20℃ to +70℃ |
| 21 |
Storage temperature |
-30℃ to +80℃ |
