| Features: |
| 1. External video signal input |
| 2. AI recognition for vehicle and pedestrian detection, monitoring and warning alerts |
| 3. Support 1-channel video input (default 12V power supply for camera output, customizable 5V output) |
| 4. Support 1-channel video output |
| 5. Support 1-channel warning audio output |
| 6. Support 1-channel warning output (high level) |

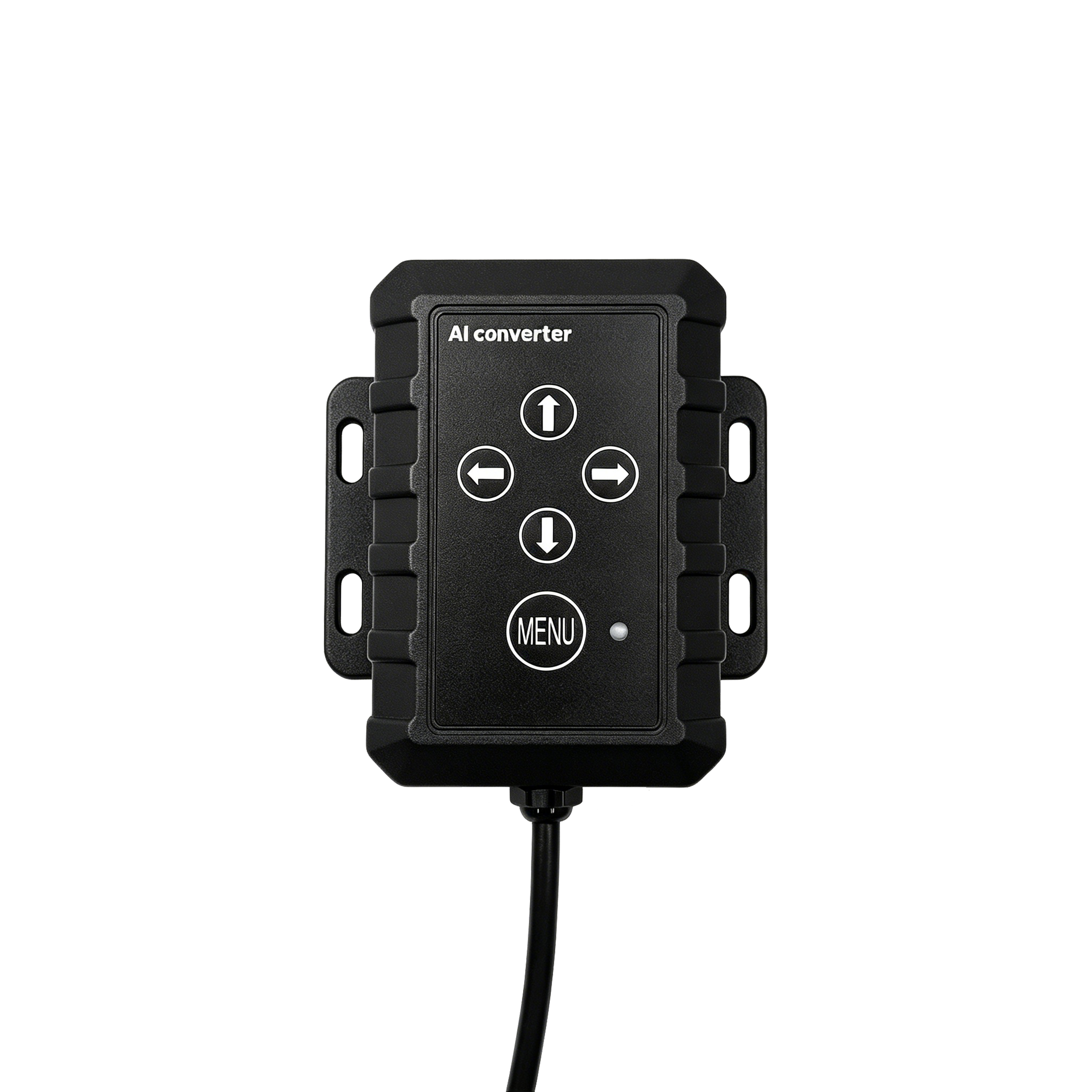

| 7. Support button adjustment for required functions and parameters |
| 8. Built-in 24V power supply |
| 9. Adopt Yizhi SV830D solution, integrated with 0.5T NPU, efficiently support intelligent algorithms such as human shape detection and vehicle detection. With professional ISP image quality, built-in 1 Gb DDR; support fast startup and image output. |
| |
|
|
| Specifications: |
| No. |
Parameter Name |
Parameter Specification |
| 1 |
Video Input |
Support CVBS/720P/1080P N/P system, auto-adaptive |
| 2 |
AI Recognition Algorithm |
Built-in algorithm; 0.5TOPS |
| 3 |
Installation |
Support front, rear, left and right installation (with different rulers), corresponding modes can be set according to installation requirements |
| 4 |
Video Output |
Default AHD1080P/P system (1080P/720P/CVBS, N/P system, can be set manually) |
| 5 |
Mirroring |
Mirror/original image can be set manually according to installation requirements |
| 6 |
Flip |
Flip function can be enabled or disabled manually according to installation requirements |
| 7 |
Warning |
Pedestrian/vehicle warning, pedestrian-only warning, vehicle-only warning can be set manually |
| 8 |
Ruler |
Ruler shape can be set manually as required |
| 9 |
Cable Interface |
Standard mini 4P aviation male and female connectors; female connector for audio/video output and local power input (12-24V); male connector for video input and camera power supply (12V); green electronic wire for alarm output trigger line (high level) |
| 10 |
Operating Voltage |
DC12-24V |
| 11 |
Operating Current |
12V 150mA |
| 12 |
Power Consumption |
＜2W |
| 13 |
Installation and Fixing |
4 fixing holes for installation |
| 14 |
Housing Material |
Aluminum alloy |
| 15 |
Housing Color |
Black (baking finish) |
| 16 |
Dimensions |
98*86*25mm |
| 17 |
Operating Temperature |
(-20℃ to +70℃) |
| 18 |
Storage Temperature |
(-30℃ to +80℃) |
