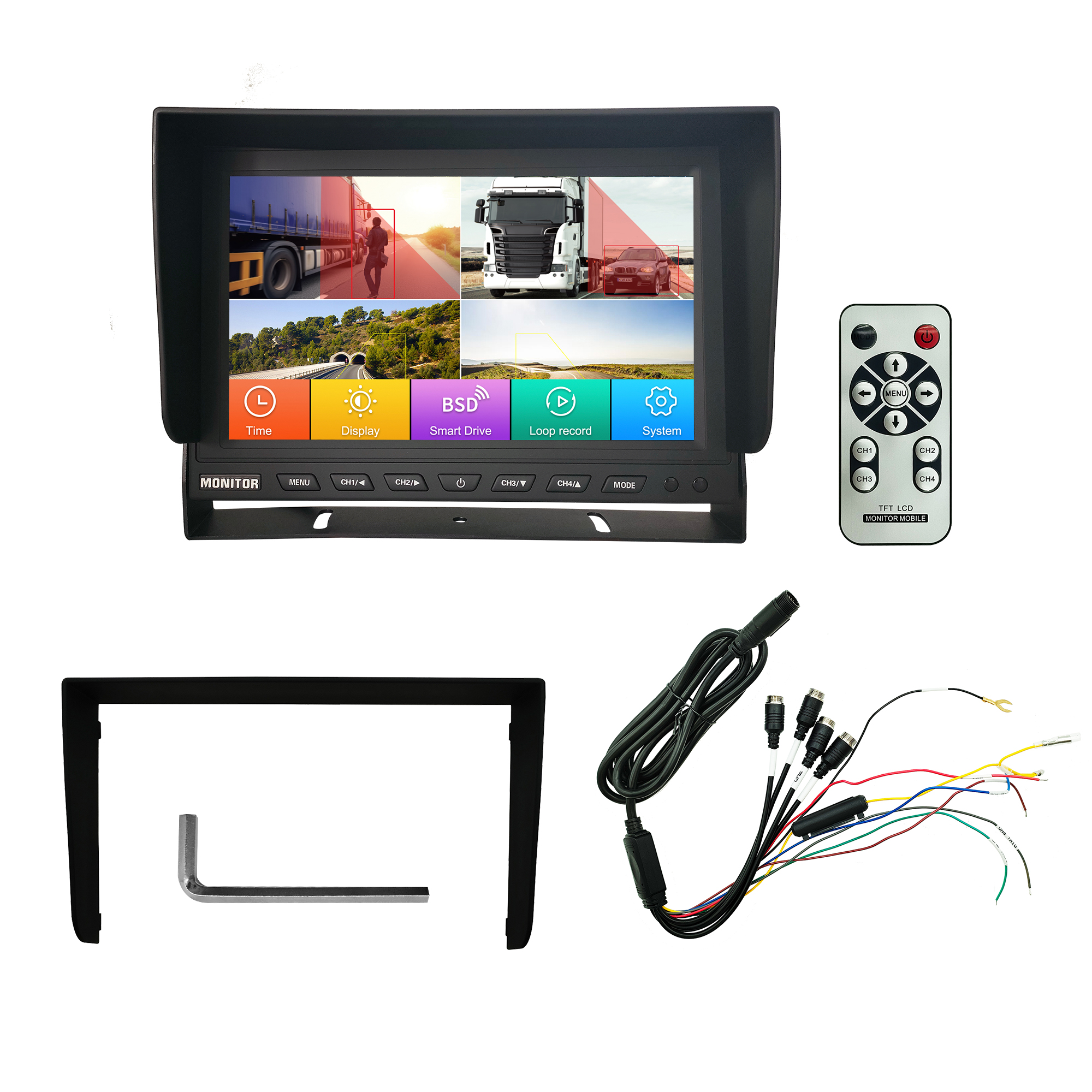

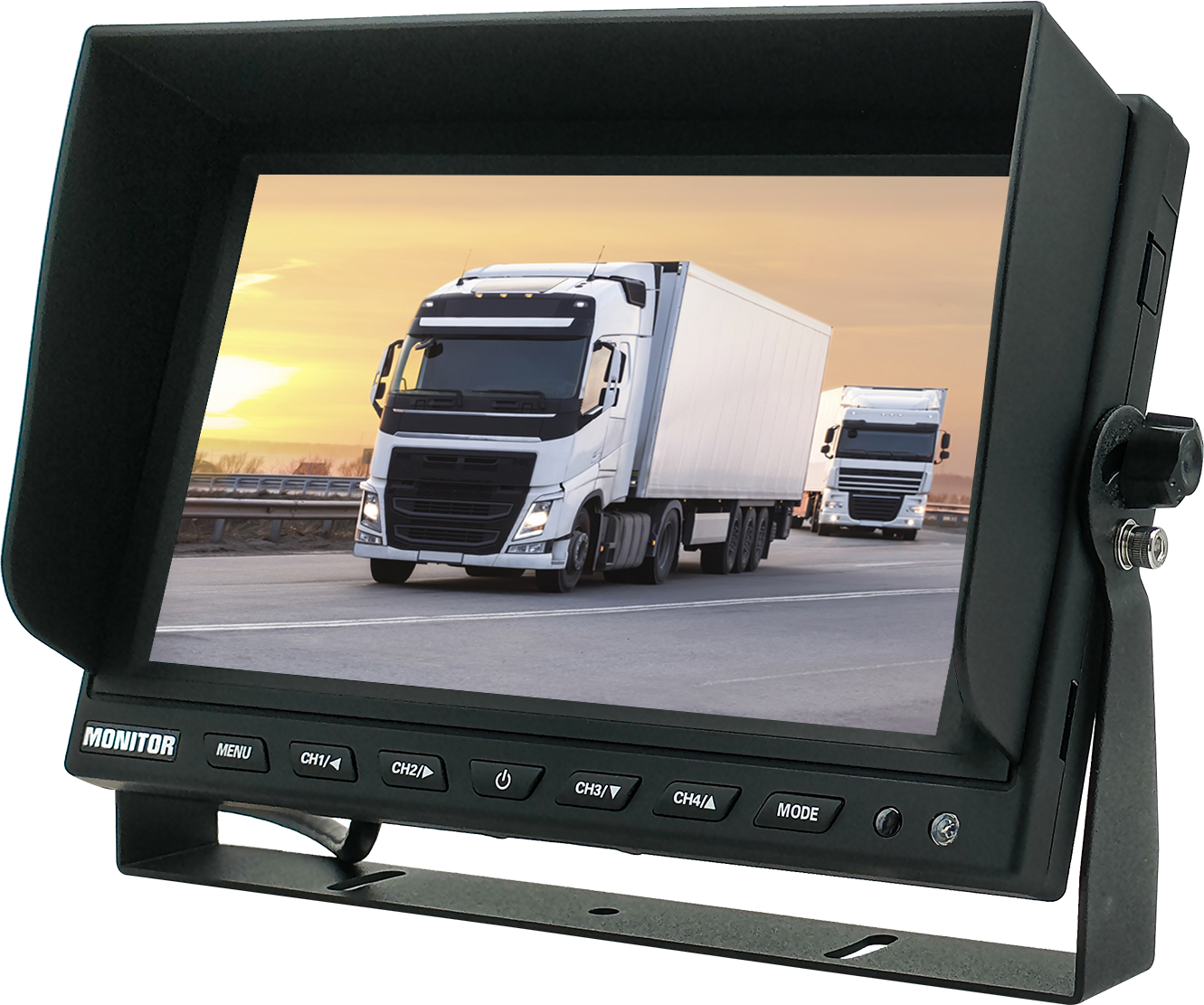

| Product Main Features |
| 1. 9 inch HD quad monitor with recording function |
| 2. Support multiple video signal (AHD/TVI/CVI/CVBS) input (Automatically) |
| 3. PAL/NTSC (Automatically) |
| 4. Support 4CH video and 1CH audio input |
| 5. Built-in DVR module, support 4CH video recording, and real-time replay. |
| 6. SD memory card storage, 256G(Max. C10) |
| Model No. |
EV-9012MHQ-DVR |
| Screen Size |
9 inch HD color IPS screen |
| Screen ratio |
16:9 |
| Resolution |
1024*R.G.B*600 |
| Backlight |
LED, 400 CD/m2 |
| Contrast |
500:1 |
| Viewing angle |
Up—85°，Down—85°，Left—85°，Right—85° |
| Video input |
Support 4CH 1080P/720P/960P/CVBS/Mixed video signal input |
| Audio input |
No |
| OSD menu |
Image settings、Image turnover、Blue/Black screen (No signal)、Language settings、Recording settings、Parking guide line on/off、Reset |
| DVR |
Built-in |
| Storage memory card |
SD card（C10），256G(Max. C10) |
| Compressed format |
H.264 |
| Recording resolution |
1920*1080 |
| Recording file output |
AVI |
| Recording file size |
81Mb/ 3 minutes |
| Recording replay |
Support single channel real time replay |
| Language |
English / Chinese |
| Image display |

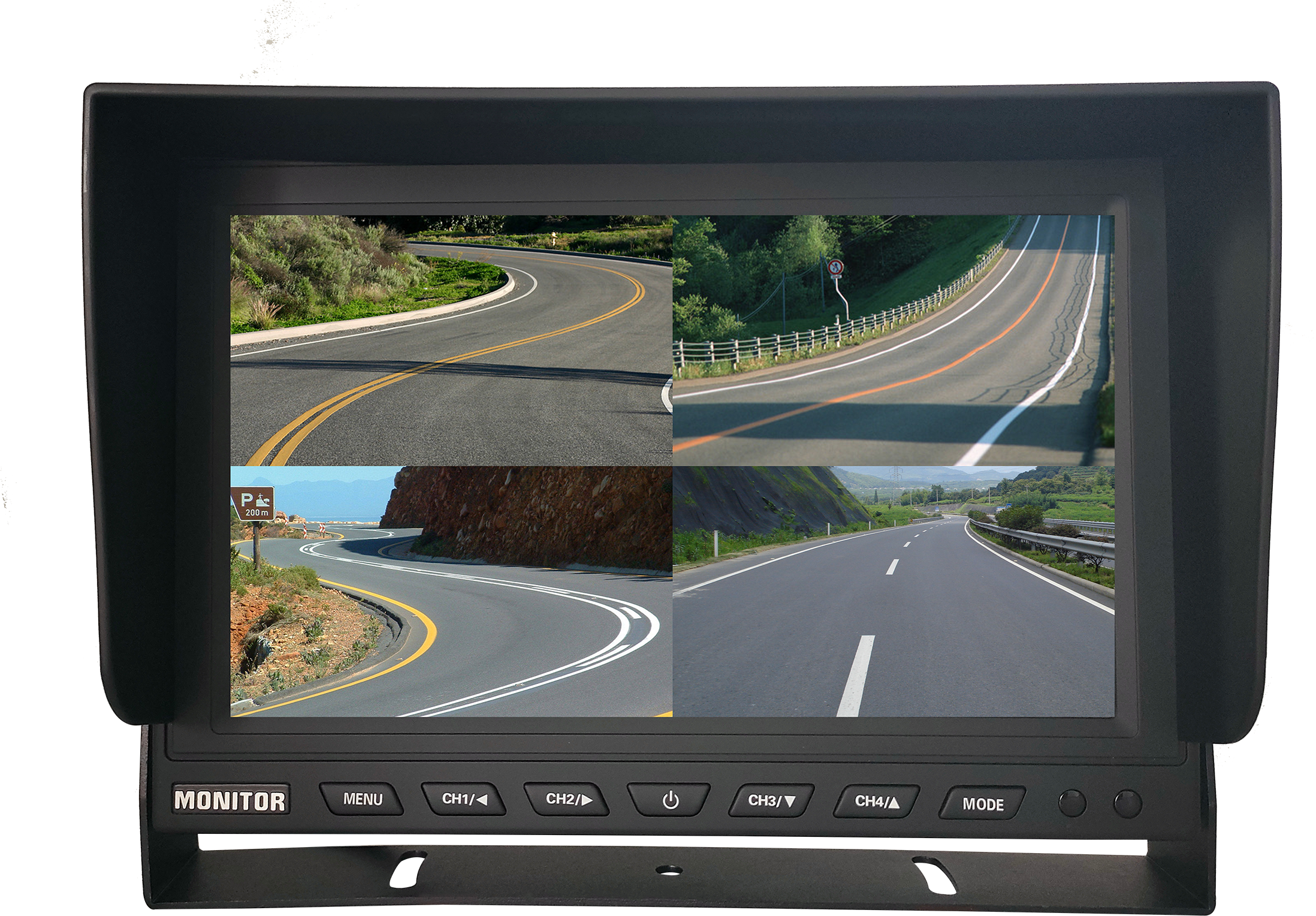

Single/double/triple/quad image display |
| Trigger |
4CH |
| System |
PAL/NTSC (Automatically) |
| Power supply |
DC 12-24V |
| Currents |
12V/900MA |
| Operating power |
5W |
| Boot time |
About 3 sec. |
| Operating temperature |
-20~+70 ºC |
| Operating humidity |
85%RH |
| Storage temperature |
-30~+85ºC |
| Vibration rating |
4G |
| Weight |
730g |
| Housing size( Not included the bracket) |
235*33.3*158mm（L*W*H） |
