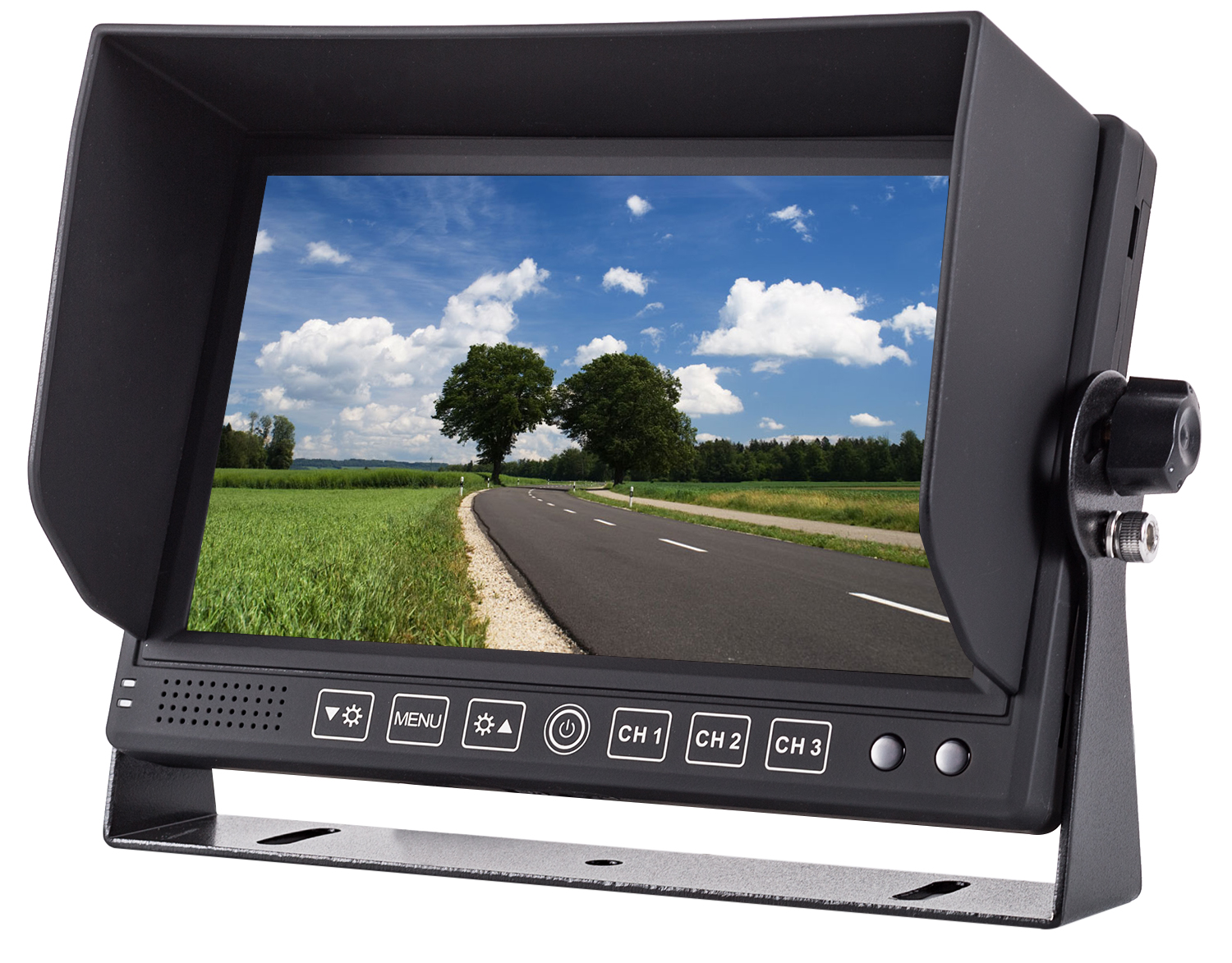

| Product Main Features： 141+N5 version |
| 1. 7 inch AHD quad monitor with recording function |
| 2. Touch button with blue LED lights |
|
| 3. Support multiple video signal (1080P/720P/960H/CVBS) input (Automatically) |
| 4. PAL/NTSC (Automatically) |
| 5. Support 4CH video, Supports multiple segmentation modes |
| 6. Built-in DVR module, support 4CH video recording, and real-time replay. |
| 7. SD memory card storage, 256G(Max. C10) |
| Product Specifications: |
| Model No. |
EV-7012MHQ-DVR |
| Screen Size |
7 inch HD color IPS screen |
| Screen ratio |
16:9 |
| Resolution |
1024*R.G.B*600 |
| Backlight |
LED, 400 cd/m2 |
| Contrast |
500:1 |
| Viewing angle |
Up—85°，Down—85°，Left—85°，Right—85° |
| Video input |
Support 4CH 1080P/720P/960P/CVBS Mixed video signal input |
| Audio input |
1CH audio input for CH1 (no audio when playback) |
| OSD menu |
Image setting, Image turnover, Blue/Black screen (No signal), Language setting, Recording settings, Parking guide line on/off, Reset |
| DVR |
Built-in |
| Parking guide line |
Each channel is controlled separately, Off as default |
| Mirror / Normal image |
Each channel is controlled separately, mirror as default |
| Reversing delay |
Each channel is controlled separately, 3S as default |
| Storage memory card |
SD card（C10），256G(Max. C10) |
| Compressed format |
H.264 |
| Recording resolution |
1080P |
| Recording file output |
AVI |
| Recording file size |
81Mb/ 3 minutes (recording file sizes are also different with different signal ) |
| Recording replay |
Support single image real time replay |
| Language |
English / Chinese |
| Image display |
Single/double/triple/quad image display |
| Trigger |
4CH |
| Speaker |
1CH |
| System |
PAL/NTSC (Automatically) |
| Power supply |
DC 12-24V |
| Currents |
12V/1.1A |
| Operating power |
13.2W |
| Boot time |
About 3 sec. |
| Operating temperature |
-20~+70 ºC |
| Operating humidity |
95%RH |
| Storage temperature |
-30~+80 ºC |
| Vibration rating |
4G |
| Weight |
612g |
| Housing size( Not included the bracket) |
180*24*121mm（L*W*H） |
