EV-1010MHQ-DVR + EV-220FHD

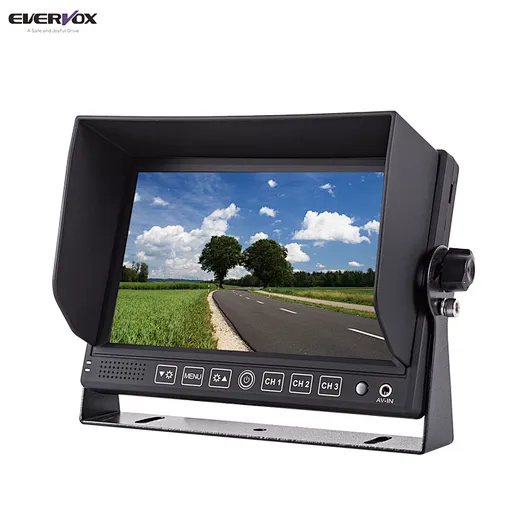

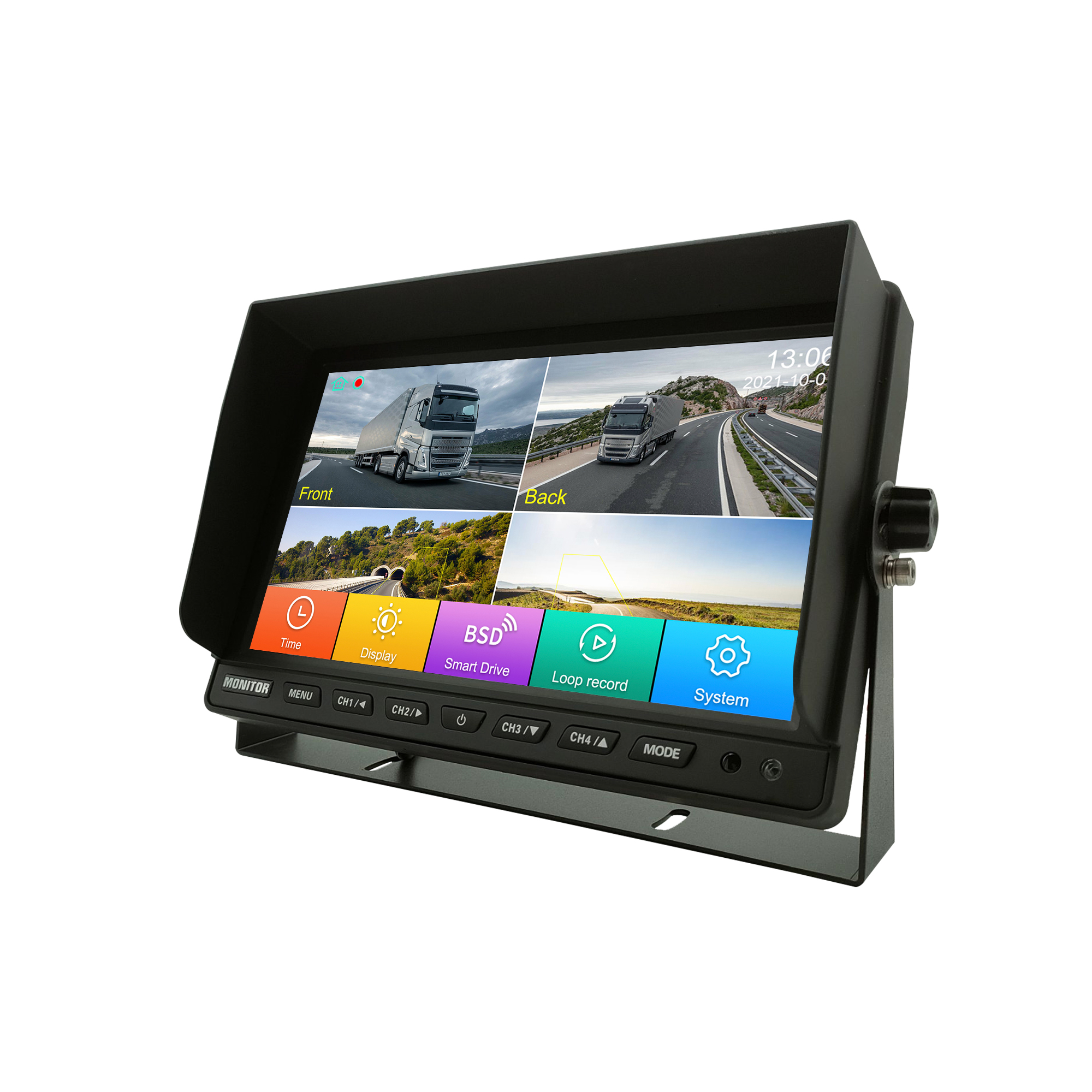

This 7"monitor, with 5CH input. 9 languages selectable for user operation With multiple viewing options.
| Specification | Model No：EV-1010MHQ-DVR |
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Back light | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | U—85°，D—85°，L—85°，R—85° |
| Operation method | Full screen touch/button control |
| OSD control | Time Setting, Brightness Adjustment, Intelligent Driving, Loop Recording, System Setting |
| Power consumption | Normal working condition＜11.4W |
| Signal input | Support AHD 720P/720N/1080P/1080N video signal input, mixed signal input is not supported |
| DMS | Optional |
| Recording | Support |
| SD card storage | Support 8-256G , high-speed card |
| Video compression format | H.264 compression mode |
| Video resolution | 1200*720 |
| Video playback | Single channel playback |
| File format | ST |
| File size | About 7.24M/min (720/1080) |
| System language | Chinese, English, Japanese, Korean |
| Display image switch | Voice control, double-tap touch screen, button switch |
| Trigger | 4CH, with guideline function |
| Blind Spot Detection | Support 3 channel, Left, right, back |
| Shockproof level | 4G |
| Audio | Front view recording |
| Working temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 12-24V |
| Booting time | 5S |
| Current consumption | TYPE:12V/900MA（4 channel） |
| Speaker | With speaker |

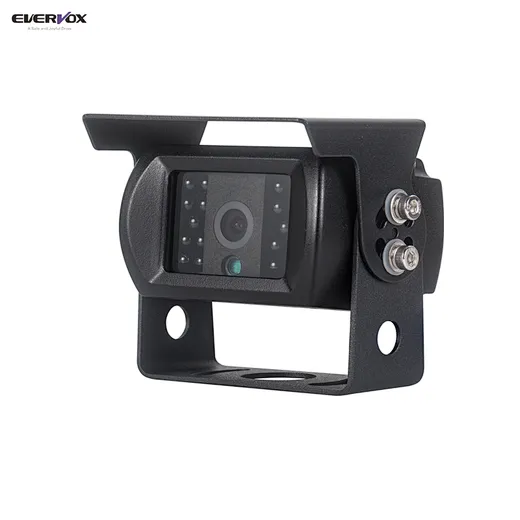

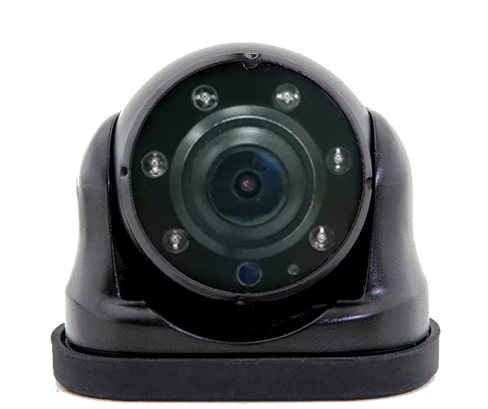

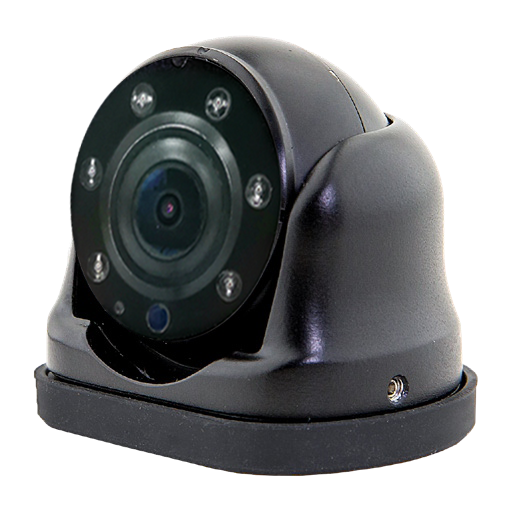

| SPECS | Model No.：EV-220FHD |
| Image sensor | CMOS 1/4 |
| Resolution | 720P/100W |
| Illuminance | 0.1Lux，infrared night vision |
| Viewing angle | 2.1mm waterproof lens 130 degree |
| Image | Mirror as default (Could set mirror&non-mirror switchable) |
| System | PAL system as default (Could set PAL&NTSC switchable) |
| Audio | Without audio as default (With audio optional) |
| Distance grid ( reverse linne) |
Without distance grid (Could set with distance grid or without switchable) |

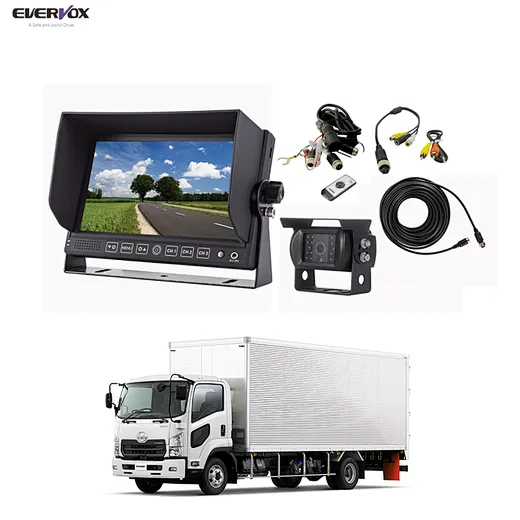

| Appearance | Aluminium alloy material, out-standing design, suitable for bus, truck and small vehicles |
| Waterproof level | IP68 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC12-24V |
| Power consumption | About 1.5W |
| Maximum current | 130MA |
| Output | 1 channel HD output |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |
| Size | 67*55*43.5mm |
| Weight | kg |
| Accessories | Extension cable, DC 5.5 male connector extension cable, hexagon screws, bracket, user manual |
