EV-709MHQ + EV-219FAHD

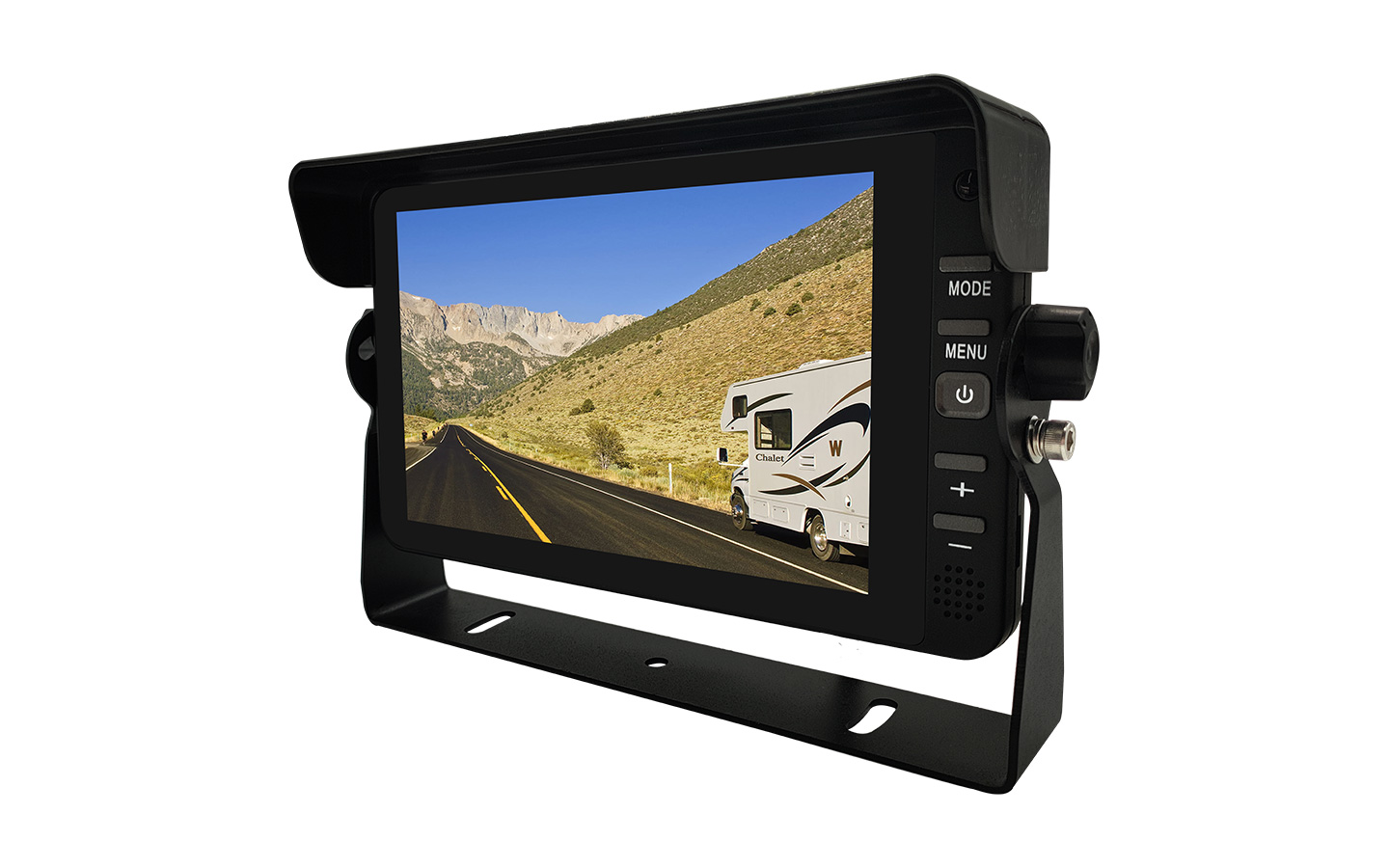

| SPECS | Model No.：EV-709MHQ |
| Screen ratio | 16:9 |
| Resolution | 1200*R.G.B*1920 |
| Backlight luminance | 450 cd/m2 |
| Contrast | 1200:1 |
| FPS | 1080P: P25f/s, N30f/s |
| Viewing angle | UP—80°，DOWN—80°，LEFT—80°，RIGHT—80° |
| Working temperature | -10~+60 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+70 ºC |
| Power supply | DC12-24V |
| Boot time | 2S |
| Current consumption | TYPE DC12V/320mA |
| OSD control | Image display, reversing delay, image mode, System setting |
| Power consumption | ＜4W |
| Signal input | 4CH AHD 1080P / 720P / CVBS input, 2CH audio input compatible with CVBS and AHD signals compatible with PAL and NTSC systems |
| Language | Simplified Chinese, English, Traditional Chinese (8 kinds of language) |
| Image display | 4CH single image display |
| Trigger | 4CH trigger control, could set reversing delay |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
| Size | 194*115*26MM |

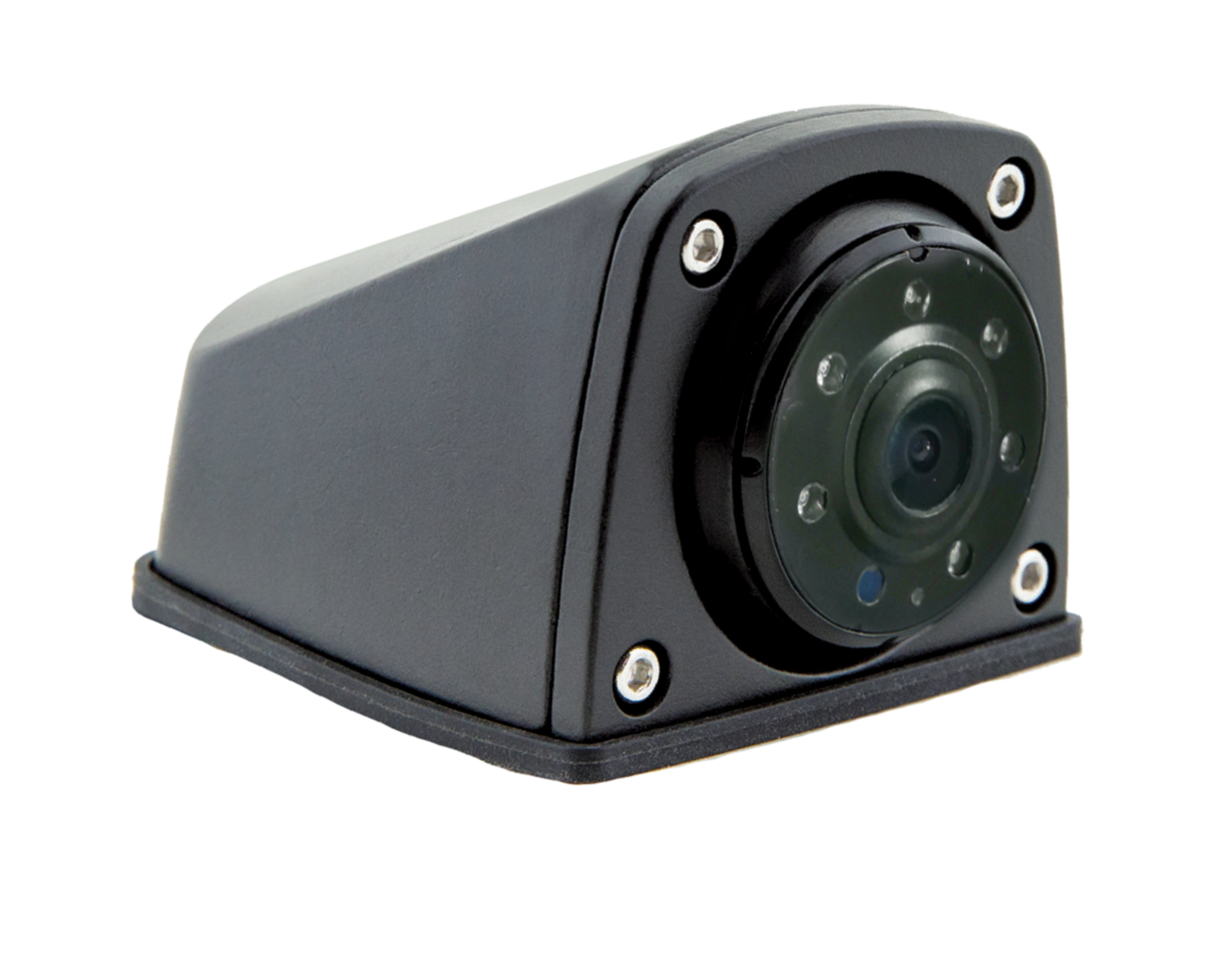

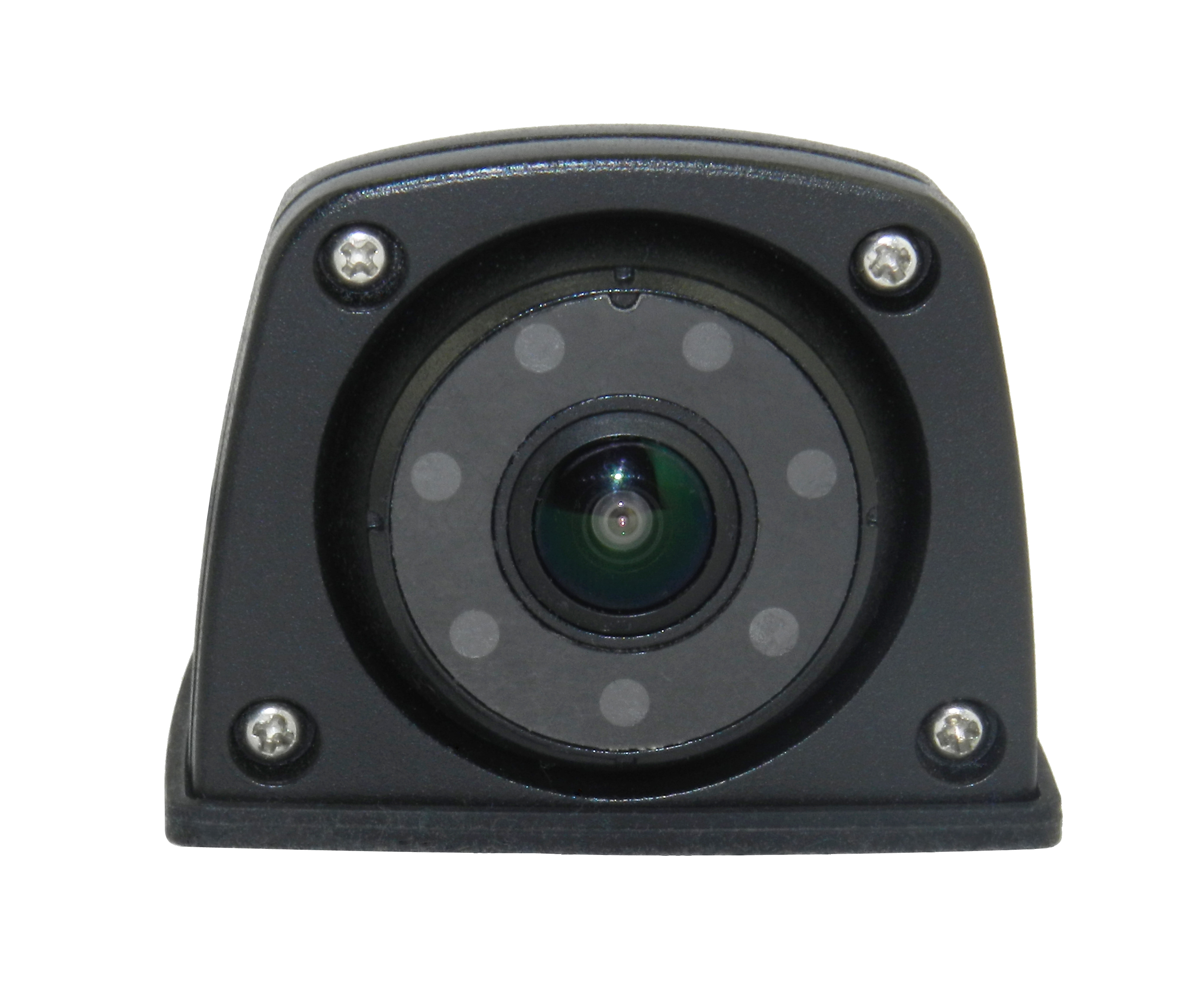

| No. | Parameter | Specification |
|---|---|---|
| 1 | Sensor Type | CMOS 1/3" |
| 3 | Effective Pixels | 1920H × 1080V |
| 4 | White Balance | Auto (No Lighting Required) |
| 5 | Backlight Compensation | Yes |
| 6 | Noise Reduction | 3D DNR |
| 7 | Field of View | 2.1 mm Waterproof Lens, Mirrored Image, 180° Horizontal Viewing Angle |
| 8 | Signal-to-Noise Ratio (S/N) | ≥52 dB (AGC OFF) |
| 9 | Video System | Standard PAL (NTSC Available) |
| 10 | Audio | Not Included by Default (Optional) |
| 11 | Distance Guide Lines | Not Included by Default (Optional, Cable-Controlled Switching Available) |
| 12 | Image Mirroring | Mirrored by Default (Cable-Controlled Switching Available) |
| 13 | Video Output | 1-Channel HD Signal Output, 1.0 Vp-p / 75 Ω |
| 14 | 3D Noise Reduction | Yes |
| 15 | Waterproof Rating | IP68 |
| 16 | Vibration Resistance | 4G |
| 17 | Cable Connector | Standard Aviation Connector |
| 18 | Operating Voltage | 9–12 V DC (24 V Optional) |
| 19 | Power Consumption | Approx. 1.5 W |
| 20 | Maximum Current | 155 mA (5 V) |
| 21 | Operating Temperature | −40°C to +70°C |
| 22 | Storage Temperature | −40°C to +80°C |
