EV-709MIAHD + EV-109CHD
| 7" MIPI AHD Monitor | |
| Product Features 1. MIPI 4D Screen, 1200*1920 ultra high resolution 2. DC 12-24V 3. 3CH video input and 2CH audio input (CH1&CH2), 3CH trigger control 4. 14PIN black waterproof connector to 4PIN connctor cables 5. Support 1080P/720P/CVBS multiple signals mixed input 6. PAL & NTSC system automatically 7. OSD menu 8. Remote control 9. System setting: Brightness,contrast,saturation,screen flip,display mode,trigger delay,language 10. Startup time 2s, channel switch 2s, reversing to display 2s |
|
| SPECS | Model No.：EV-709MIAHD |
| Screen ratio | 16:9 |
| Resolution | 1200*R.G.B*1920 |
| Backlight luminance | 450 cd/m2 |
| Contrast | 1200:1 |
| FPS | 1080P: P25f/s, N30f/s |
| Viewing angle | UP—80°，DOWN—80°，LEFT—80°，RIGHT—80° |
| Working temperature | -10~+60 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+70 ºC |
| Power supply | DC12-24V |
| Boot time | 2S |
| Current consumption | TYPE DC12V/320mA |
| OSD control | Image display, reversing delay, image mode, System setting |
| Power consumption | ＜4W |
| Signal input | 3CH AHD 1080P / 720P / CVBS input, 2CH audio input compatible with CVBS and AHD signals compatible with PAL and NTSC systems |
| Language | Simplified Chinese, English, Traditional Chinese (8 kinds of language) |
| Image display | 3CH single image display |
| Trigger | 3CH trigger control, could set reversing delay |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
| Size | 194*115*26MM |

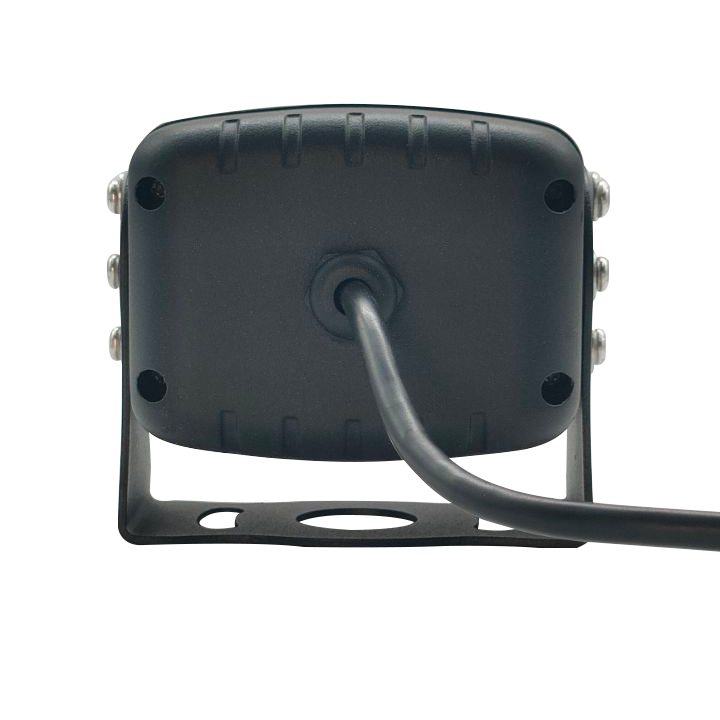

| High Resolution Night Vision Camera | |
| SPECS | Model No.：EV-109CHD |
| Image sensor | CMOS 1/3 |
| Resolution | 1920*1080P |
| Wide dynamic | Support (mobile frame rate 100DB) |
| Viewing angle | 2.8mm lens, real horizontal viewing angle 95 degrees |
| SNR | ＞52DB(AGC OFF) |
| System | PAL system as default (with NTSC system optional) |
| Audio | Without audio as default (With audio optional) |
| Parking guideline | Without |
| Image | Mirror image as default |
| Waterproof level | IP68 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC 9-12V (24V optional) |
| Power consumption | About 1.8W |
| Maximum current | 155MA (12V) |
| Video output | 1080P |
| Working temperature | -20℃ to +70℃ |
| Storage temperature | -30℃ to 85℃ |
