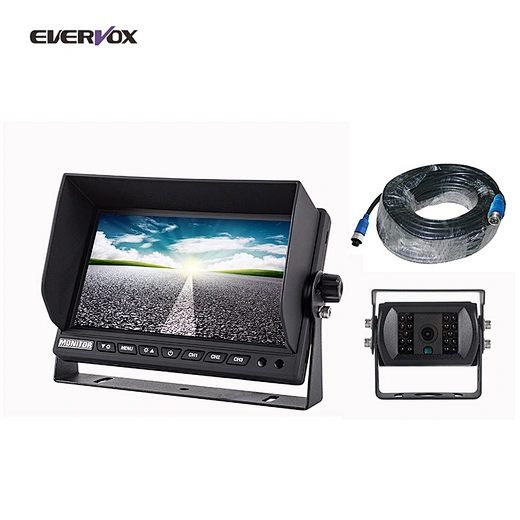

7 inch car quad rearview monitor parking monitor with hdmi input
Placement:Dashboard
Combination:Built-in GPS
Combination:DVD Player
Combination:MP3 / MP4 Players
Combination:Touch Screen
Combination:TV
Place of Origin:CN;GUA
Certification:FCC CE
Car Make:Universal Vehicles
Brand Name:EVERVOX / OEM
Model Number:EV-7010MS-AHD
Warranty:1 Years
MONITOR:
|
Specifications |
Model number: EV-7010M-AHD |
|
Screen Ratio |
16 : 9 |
|
Resolution |
LED, 300cd/M2 |
|
Back Light luminance |
LED,Brightness 250 cd/m2 |
|
Resolution |
1024xRGBx600 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Brightness, Contrast, Saturation, Volume, Language (English, Simplify Chinese) |
|
View angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
DC 12-24V |
|
Power consumption |
5W |
|
Storage temperature |
-30~80℃ |
|
AV Inputs |
3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 |
|
Number of Trigger and display |
-20 oC to 70 oC |
|
size |
3 triggers |
|
Optional functions |
4 PIN connector or RCA connector |
|
Other features |
OSD menu, Remoter control, Sunshade design aroundt |
|
Accessories |

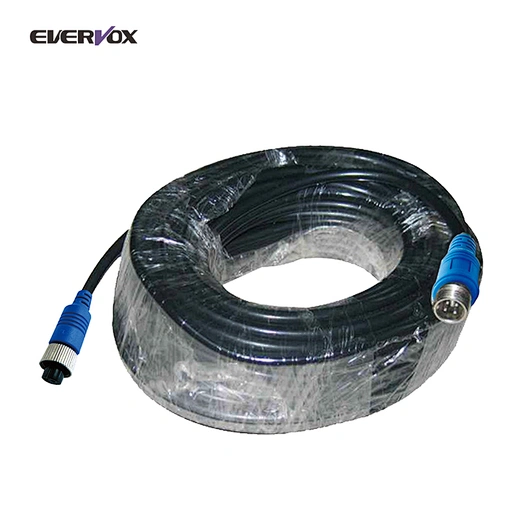

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench |
|
Package |
6pcs/box net weight: 13.2KGS gross weight:14KGS M: 54*43*27cm |
CAMERA:
|
Specifications
|
Model number: EV-103HD |
|
Image sensor |
MIX SONY225 CMOS 1/3” |
|
Resolution |
1280*720(100W) |
|
Illuminance |
0.1Lux,Infrared night vision |
|
Viewing Angle |
140 degree |
|
Image |
Mirror or Non-mirror optional |
|
Appearance and Application |
Aluminum alloy material shell, outside hanging design; Suitable for bus, trucks and special vehicles |
|
System |
PAL/NTSC optional |
|
Waterproof Level |
IP68 |
|
Shockproof Level |
4G |
|
Power Requirements |
<3W |
|
Working Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
20℃ to 70℃ |
|
Storage temperature |
-20 oC to 70 oC |
|
Size |
86.5mm*77mm*75mm |
|
weight |
300g |
|
Accessories |
Remote control,power cable,3hex wrench,bracket,user book |
