EV-7010MWAI-DVR + EV-505HD
| SPECS | Model No.：EV-7010MHQ-D |
| Aspect ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, Luminance 300 cd/m2 |
| Contrast | 500:1 |
| Frame rate | 720P:25f/s / D1: 25f/s |
| Viewing Angle | UP—85°，DOWN—85°，LEFT—85°，RIGHT—85° |
| Working temperature | -20~+60 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+85 ºC |
| Power supply | 9-30V |
| Boot time | 20S |
| Current | 750mA |
| OSD control | Image setting, mirror setting, system setting, recording setting, playback setting |
| Power consumption | ＜9W |
| Signal input | 4 channel 720P/CVBS video input |
| Image display | Multiple image display switchable |
| Trigger control | 4 channel reversing trigger control, with parking guide line function |
| Recording | Support 128G SD maximumly, 4 channel recording and playback separately |
| Video recording format | AVI |
| System | PAL/NTSC |
| Shockproof level | 4G |
| Audio input | 1 channel audio input (CH1 playback with audio) |
| Speaker output consumption | 32Ω2W |
| Weight | |
| Size |

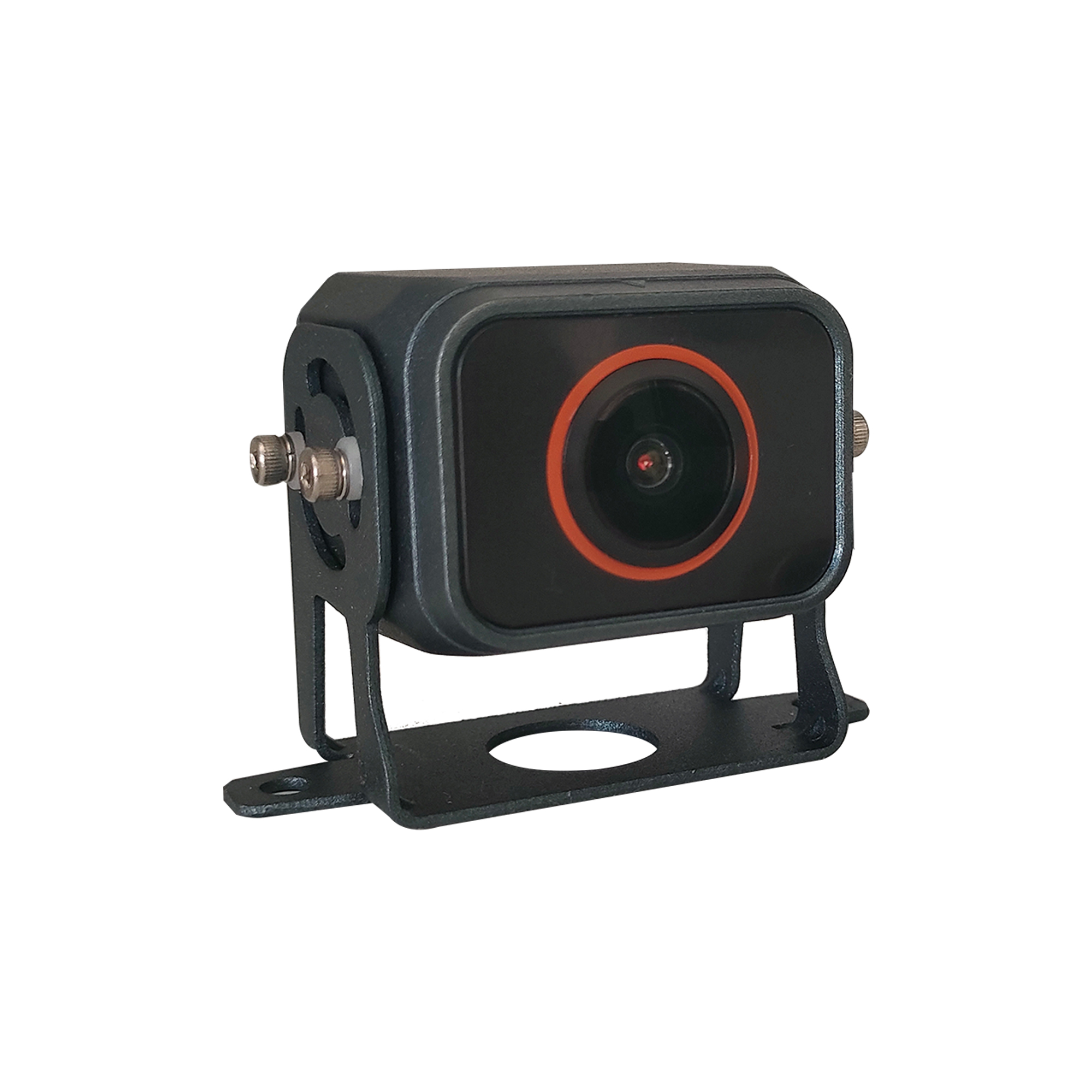

| Starlight Night Vision 1080P Backup Camera | ||
| Model No. | EV-505HD | |
| NO. | Items | Specification |
| 1 | Image Sensor | 1/3" CMOS |
| 2 | Resolution | 1920H*1080V |
| 3 | White balance | Automatic (no lights needed) |
| 4 | Backlight compensation | With |
| 5 | Noise reduction | 3D DNR |
| 6 | Viewing angle | 2.8mm lens, 95 degrees（horizontal viewing） |
| 7 | SNR | 》52DB(AGC OFF) |
| 8 | System | PAL System (NTSC optional) |
| 9 | Startlight night vision | Support, without IR lights |
| 10 | Audio | Without as default (with optional ) |
| 11 | Parking guideline | Without as default (ON/OFF adjustable optional ) |
| 12 | Image | Mirror as default (Mirror and non-mirror adjustable optional) |
| 13 | Video output | 1CH HD signal output |
| 14 | Waterproof level | IP69K |
| 15 | Shockproof level | 4G |
| 16 | Connector Type | 4PIN / RCA / Customized |
| 17 | Working voltage | Standard DC 9-12V （DC 24V optional） |
| 18 | Power consumption | About 1.5W |
| 19 | Maximum current | 155MA (12V) |
| 20 | Working temperature | -20℃ to +70℃ |
| 21 | Storage temperature | -30℃ to +80℃ |
