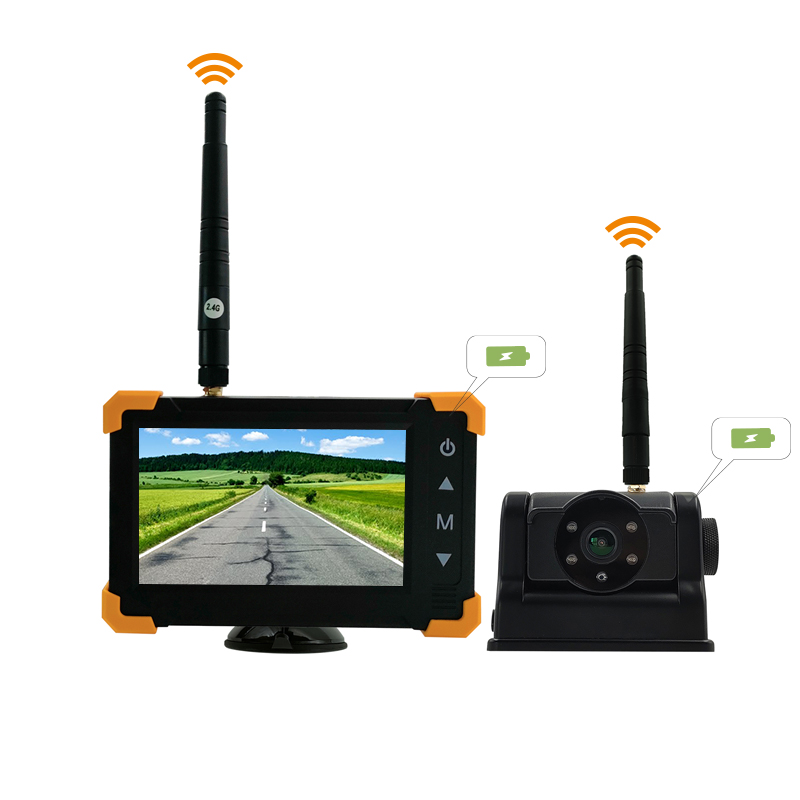

| 5″ 2.4G Digital Wireless Monitor |
|
EV-111D Wireless Camera (built-in battery) |
| Specification |
Model：EV-580MWHD |
|
Specification |
Model：EV-111D |
| Screen ratio |
16:9 IPS |
|
Resolution |
720P 1280*720px |
| Screen resolution |
800*R.G.B*480 |
|
Image Sensor |
CMOS 1/2.7" |
| Backlight |
LED, brightness 500cd/m2 |
|
Viewing Angle |
140° |
| Viewing angle |
UP—85°，DOWN—85°，LEFT—85°，RIGHT—85° |
|
Transmission Distance |
150M in open area |
| Working temperature |
-20~+70 ºC 85%RH MAX |
|
System |
N/P Automatically |
| Storage temperature |
-30~+80 ºC 95%RH MAX |
|
Spread Spectrum |
FHSS(Adaptive frequency hopping) |
| Power supply |
Tpyec connector, 5V |
|
Transmission Bandwidth |
8MHz BER<1E-3 |
| Delay time |
120mS |
|
Battery Capacity |
6400mA |
| Working Time |
8H for continuous working |
|
Battery indicator |
Support, 4PCS LED lights |
| Charging time |
1A/3.5H |
|
Battery Charging Time |
DC5.5，12~24V/6H |
| Battery Capacity |
2500mA |
|
Working Time |
18H(under continuous working conditions) |
| Wireless video |
1 channel HD wireless video input |
|
Fully charaged standby time |
Zero power consumption at standby situation |
| Frequency |
2400 ~ 2483.5MHz * |
|
Camera Adjustable Angle |
0-100 degree |
| Decompression mode |
H.264 |
|
Frequency |
2400-2483.5MHZ |
| Receive sensitivity |
-89dBm@4MHZ |
|
ON/OFF Mode |
Long press to ON/OFF, short press to show battery status |
| Spread spectrum mode |
FHSS(Adaptive frequency hopping) |
|
Installation Mode |
Magnet base adsorption installation |
| Transmission Distance |
150M in open area |
|
Night Vision |
HD-infrated night vision |
| Shockproof Level |
4G |
|
SNR |
46.5dB |
| Material |
PC，Plastic injection molding |
|
Audio |
Without (Optional) |
| Power cable |
Tpyec USB Charging Cable |
|
Waterproof level |
IP67 |
| Weight |
0.54KGS |
|
Transmitting sensitivity |
-89 dBm |
| Dimension |
148mm*94mm*20mm |
|
Material |
Black aluminium alloy |
| Attachment |
USB Charging Cable, Suction Mount or 566 fan shaped bracket or 568 butterfly shaped bracket, User Manual, 2.4G 5DB Antenna, 35M antenna extension cable, Car Charging Cable |
|
Shockproof Level |
4G |
| |
|
|
Power supply |
DC12-24V |
| |
|
|
Operation Temperature |
–20℃ ~ 70℃, RH95%MAX |
| |
|
|
Storage Temperature |
–30℃ ~ 80℃, RH95%MAX |
| |
|
|
Dimensions |
74*45.5*56.5mm |
| |
|
|
Accessories |
5.5DC male power cable, 5DB antenna, Power adapter( Euri, UK or US optional) |
