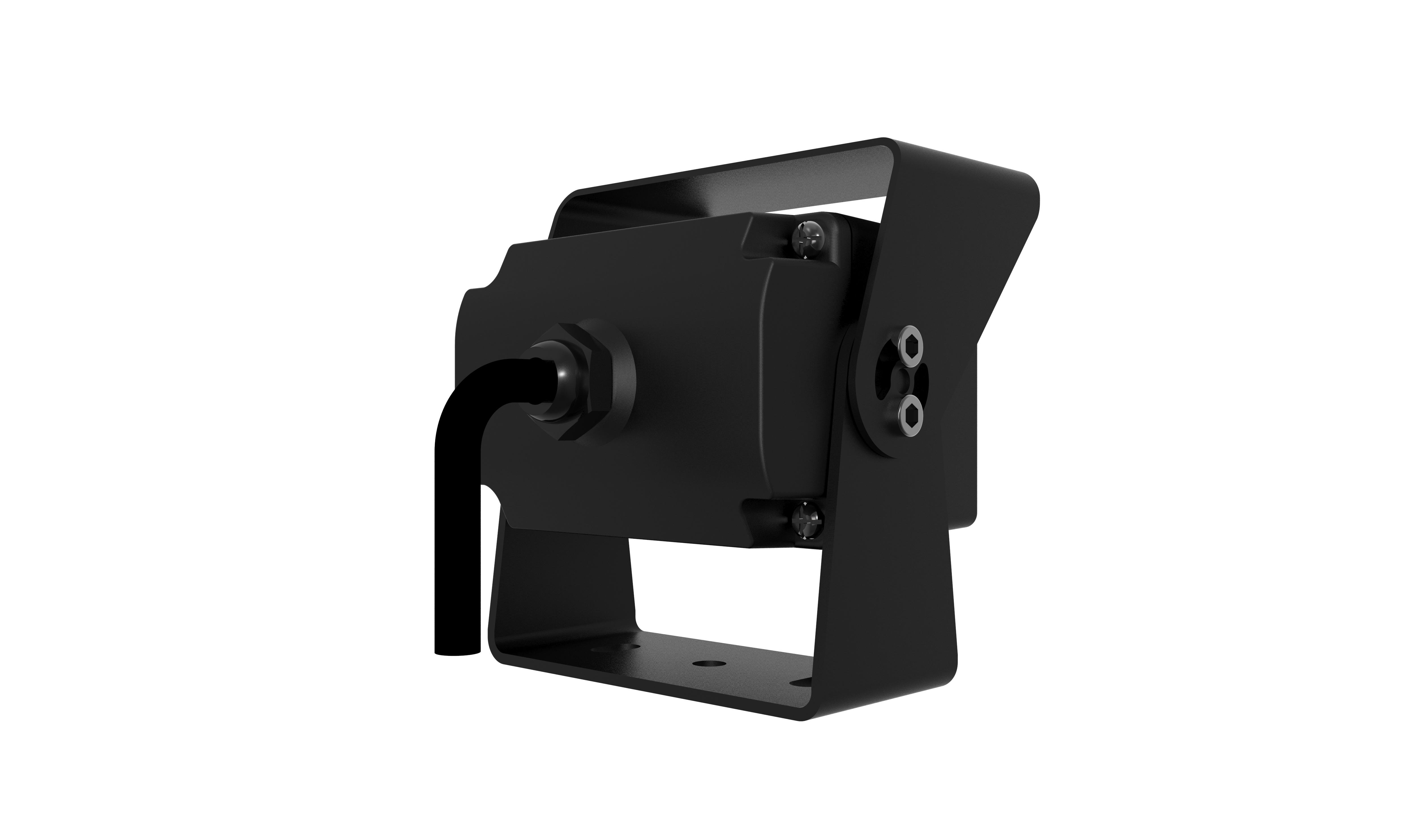

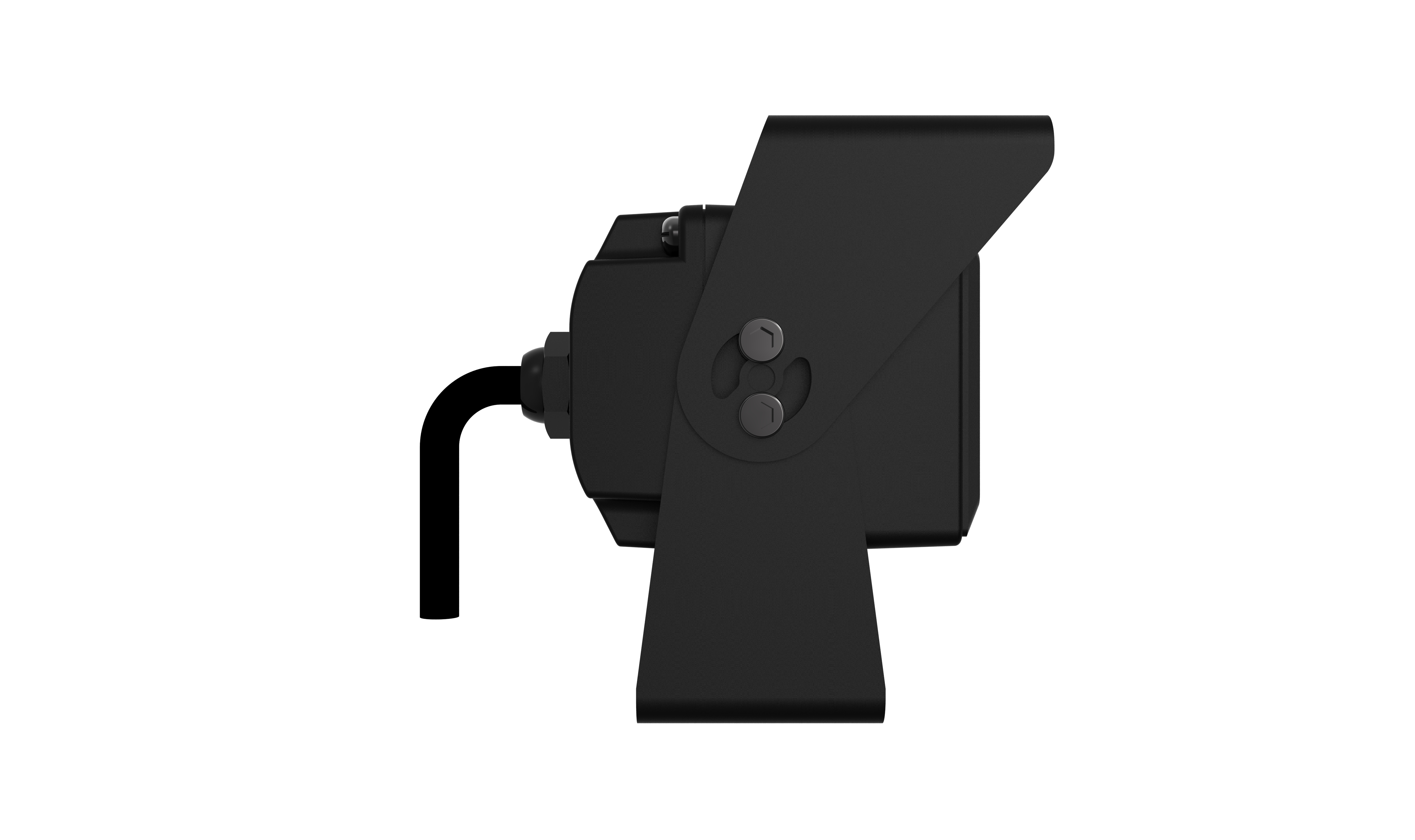

EV-121HD
|
Specifications |
Model number: EV-121HD |
|
Image sensor |
SONY CCD 1/3 |
|
Horizontal Resolution |
420 TV line |
|
Minimum illumination |
0.5 Lux |
|
Image angle |
120° |
|
Size |
67 * 58 * 56.7 mm |
|
Effective |
pixels: N:512(H)*492(V) P:512(H)*582(V) |
|
System |
PAL/ NTSC |
|
Working voltage |
12 V |
|
Waterproof level |
IP 68 |
|
S/N ratio |
＞48db |
|
Appearance |
Aluminum alloy material shell, outside hanging design |
|
Application |
Suitable for bus, trucks and special vehicles |
|
AV&Audio |
Standard AV signal inputs Built-in microphone |
|
Harness |
0.6 M power line |
|
Other functions |
Waterproof, Shockproof, Infrared night vision, Resistance to high temperature and humidity. |
