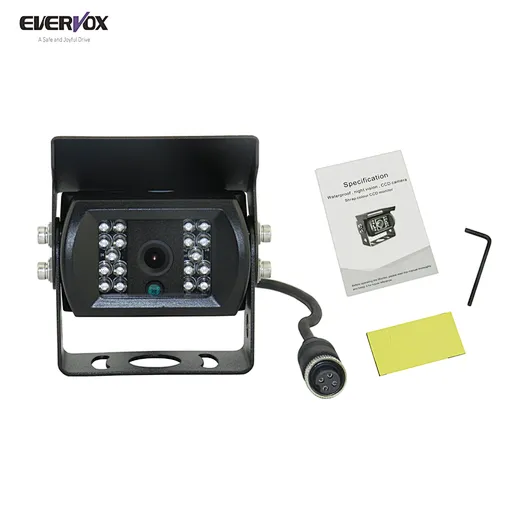

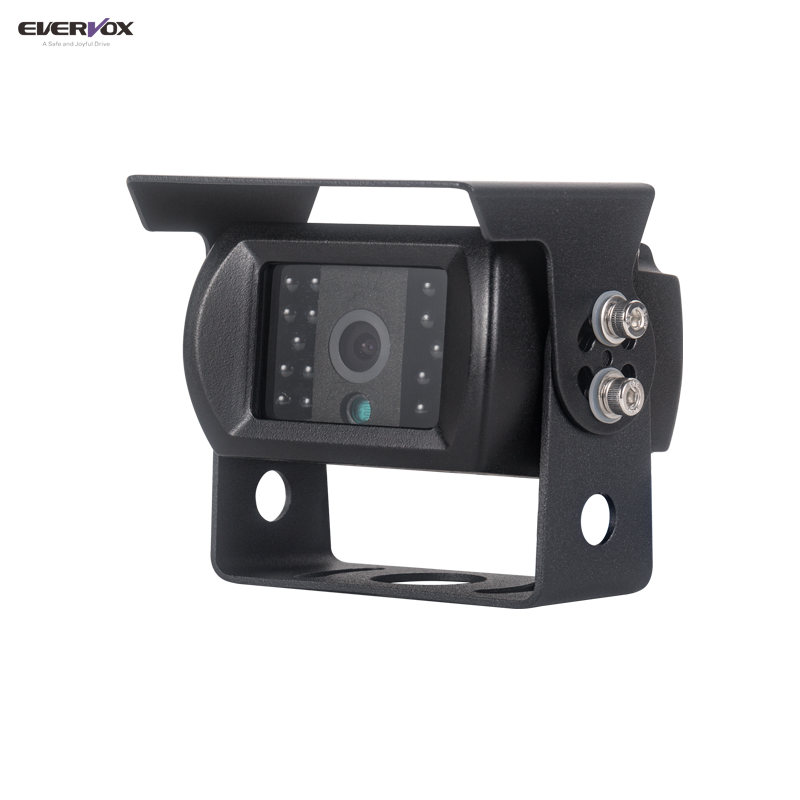

EV-103CHD
sharp ccd dual view car camera digital for parking car front view camera
1. Super HD Camera: Backup Camera is 1/3"Sharp color CCD
2. Parking line selectable to be open or closed
3. Waterproof and weather resistant housing for outdoor use
4. Excellent night vision
5. Infrared LED light: 18
6. Mirror / Normal image switch
7. Power supply: 9V ~ 12V/ 24V
8. Backup Camera Eliminate Blind Spots and Outside on Farm Tractor、Heavy Equipment、Maritime Ship、Trucks、Fork-lifts 、Security Escort 、Airport Vehicle
| Item No. | EV-103CHD |
| Image device | 1/3"SHARP CCD COLOR |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:752×582 / NTSC: 768×494 |
| Resolution | 600 TV Lines |
| Lens | 3.6 mm / 2.8 mm |
| Viewing Angle | 120 degree / 140 degree |
| Video Output | 1.0Vp-p75Ω |
| Minimum Illumination | 0 .05Lux |
| Signal to noise ratio | Better than 45dB |
| White balance | Auto |
| Waterproof Level | IP69K |
| Shockproof | 4G |
| Power Supply | 9V-16V/24V |
| Mirror or Non-mirror | Switchable |
| Parking Line | Selectable to be open or closed |
| Appearance | luminum alloy material shell, outside hanging design |

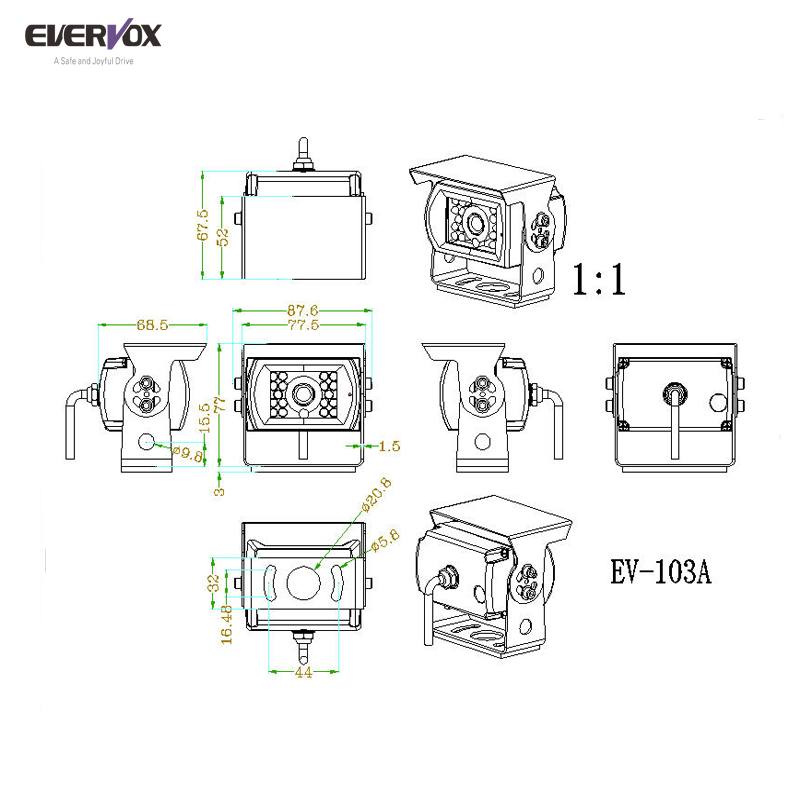

| Size | 77.5*67.5*77mm |
