| SPECS |

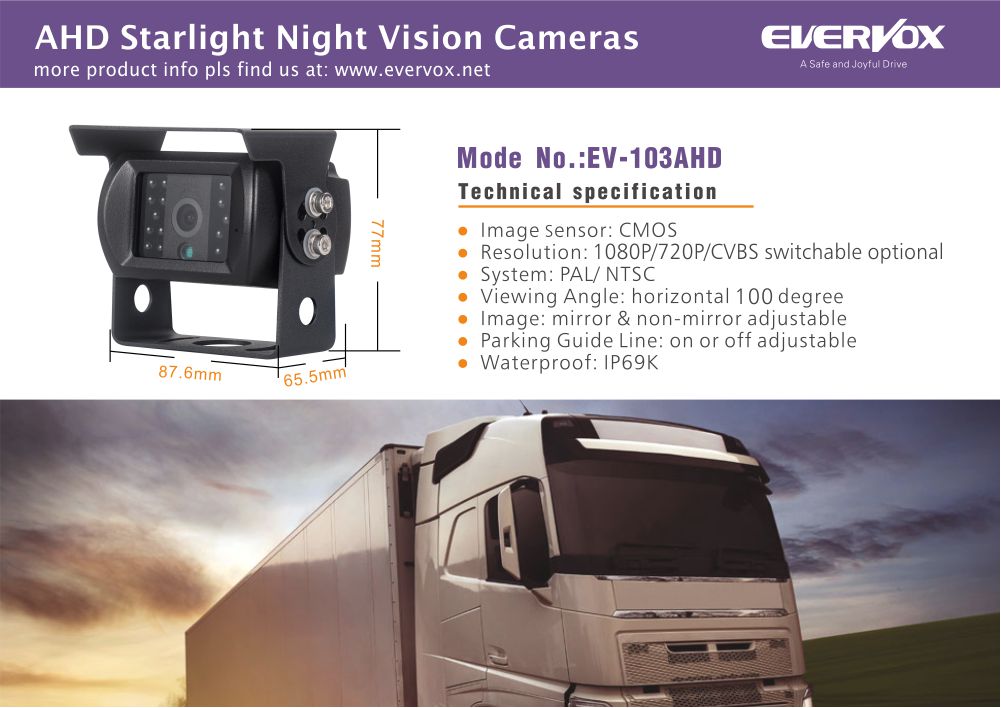

Model No.：EV-103AHD |
| Image sensor |
CMOS F23 1/3 |
| Effective Resolution |
1080P/1920H*1080V CVBS/1280*800 |
| White balance |
Automatic （without lights） |
| BLC |
Support |
| Illuminance |
0.1Lux，infrared night vision |
| Noise reduction |
3D DNR |
| Signal to noise ratio |
》52DB(AGC OFF) |
| Viewing angle |
2.8mm lens horizontal 100 degree |
| Output |
1 channel 1080P AHD signal output (1080P/720P/CVBS switchable optional) |
| Image |
Mirror as default (mirror&non-mirror switchable optional) |
| System |
PAL system as default (PAL&NTSC switchable optional) |
| Parking guide line |
Without as default (with or without switchable optional) |
| Remark: Maximally support two above switchable optional funtions at the same time |
|
| Audio |
Without audio as default (With audio optional) |
| Appearance |
Aluminium alloy material, out-standing design, suitable for bus, truck and all vehicles |
| Waterproof level |
IP69K |
| Shockproof level |
4G |
| Connectors |
4PIN |
| Power supply |
DC9-12V (24V optional) |
| Power consumption |
About 1.5W |
| Maximum current |
155MA (5V) |
| Working temperature |
-30℃ to 70℃ |
| Storage temperature |
-40℃ to 80℃ |
| Size |
67*55*43.5mm |
| Weight |
0.41KGS |

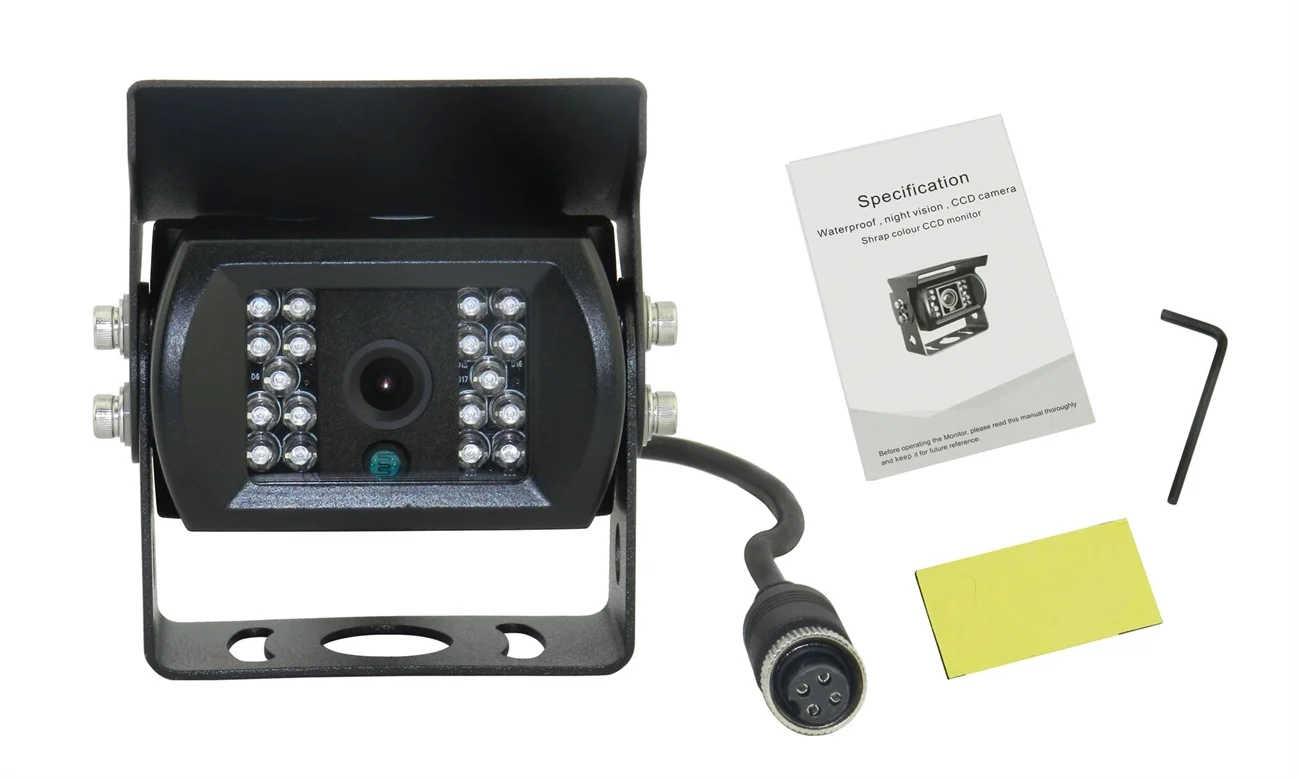

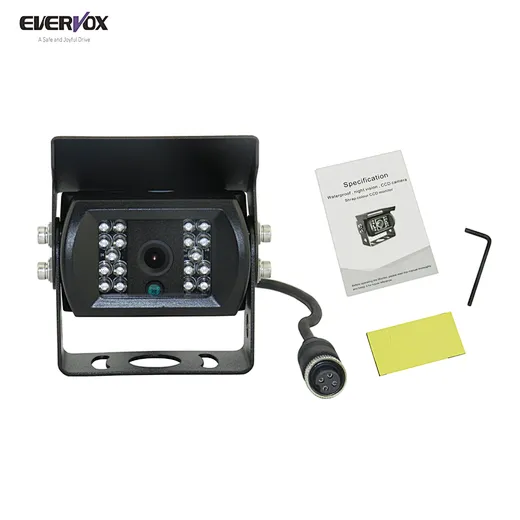

| Accessories |
hexagon screws, user manual |
