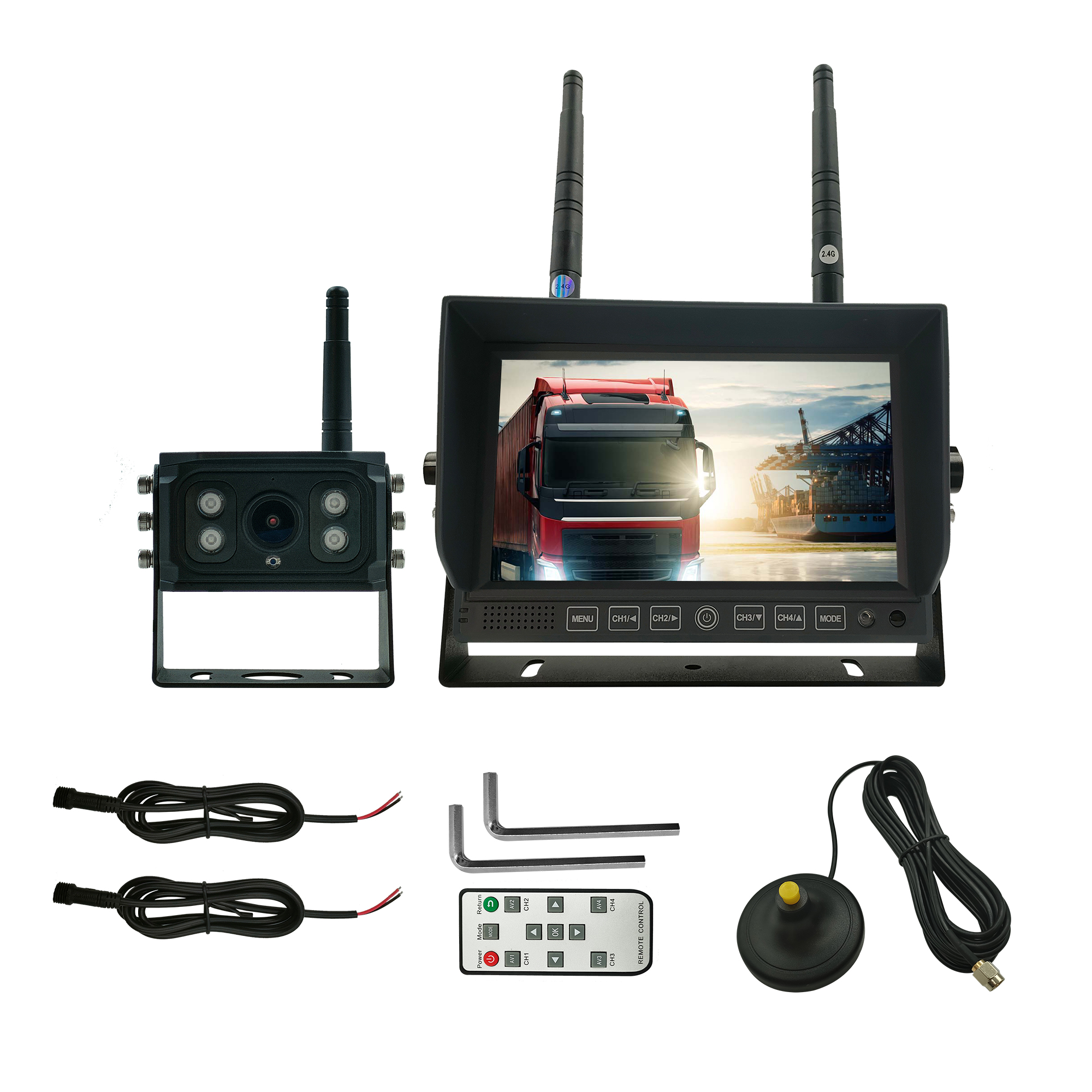

| 7" 4CH 1080P 2.4GHz Wireless Cameras & DVR System |
| Main Features |
| 1. Support 4CH wireless camera and wireless transmitter |
| 2. Video Input: supports 4CH AHD 1080P wireless cameras video input, and a variety of image display modes to meet various monitoring needs and reduce blind spots, includes single view, double view, three view and quad view |
| 3. Audio input: supports separate play of 4-channel wireless camera audio (users can manually switch and set), camera built-in microphone; |
| 4. DVR function: the monitor built-in DVR module, supports single-channel 1080P or multi-channel 720P burning video analysis (H.265 source code recording), and support real-time playback or view burned video files; SD memory card for storage (MAX. 256G) |
| 5. This system uses high-performance digital video transceiver module to make wireless transmission more smooth; and uses the H.265 and H.264 video decoder to make the picture quality more clearer and supports 1080P display |
| 6. The system has automatic exposure, automatic white balance control, 2D and 3D noise reduction, wide dynamic range and other control image presentation functions; |
| Parameters |
| 7" 2.4GHz Wireless Monitor |
| Model NO. |
EV-7012MWHQ-DVR |
| Screen |
IPS panel，Ratio: 16:9 |
| Screen Resolution |
1024*R.G.B*600 |
| Backlight and brightness |
LED, 500 CD/m2 |
| Viewing Angle |
Full angle viewing，85 degrees (Up/Down/Right/Left ) |
| DC Supply |
DC +12~+24V |
| Delay Times |
180mS Max. |
| Currents |
400±20mA @DC 12V |
| Received Power |
20dBm ±1dBm |
| Video and Audio |
Support 4CH video and audio input |
| Speaker |
Built-in, 2W/8Ω |
| Display Mode |
Single image/ dual images/triangle images/quad images displaying |
| Operation Frequency range |
2.412~2.4835 GHz ISM Band |
| Decompression Mode |
H.265 |
| Receive Sensitivity |
11Mbps-86dBm@8% |
| Recording |
Automatic loop recording |
| Time of Recording document |
3 minutes/document by default |
| Storage |
SD card（8G 至128G） |
| Recording Files |
3S/50M |
| Mode of files replay |
Single image |
| Format of Recording Files |
AVI |
| Transmission distance |
200M（In open area） |
| Seismic class |
4G |
| Working temperature |
-20~+70 ºC |
| Storage temperature |
-30~+85 ºC |
| Weight |
0.54KG |
| Outline Dimension |
180mm*121mm*24mm |

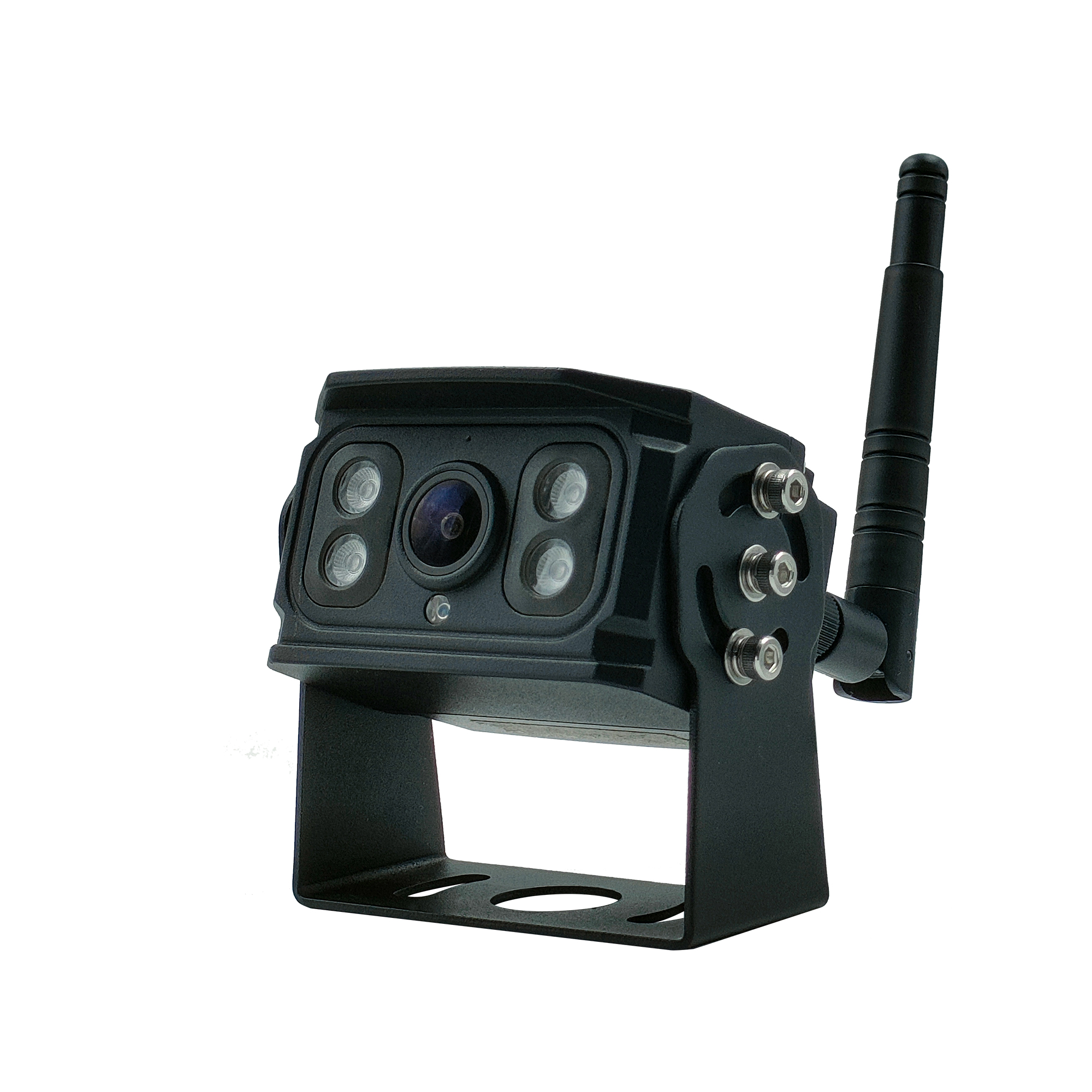

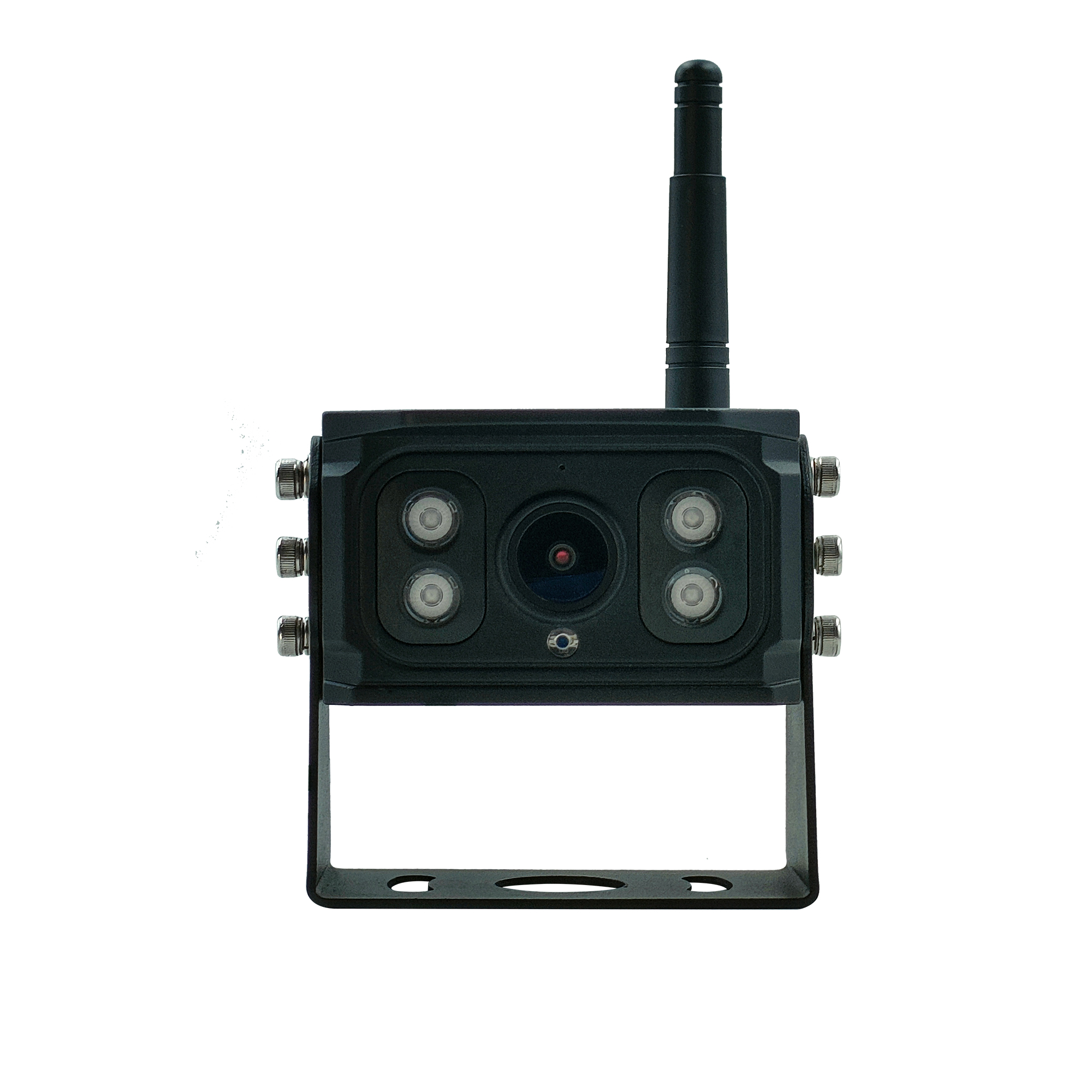

| 1080P 2.4GHz Wireless Backup Camera |
| Model NO. |
EV-504AWHD |
| Type of image sensor |
1/2.9＂ |
| Pixel |
1080P(1920*1080) |
| Operation Frequency Range |
2.412~2.4835 GHz ISM Band |
| Transmission distance |
200M（In open area） |
| Video Frequency Framerate |
30FPS |
| Video |
Support, built-in speaker |
| Transmission Bandwidth |
11Mbps |
| Image |
Mirror or Non-mirror |
| Guide Line |
Off(by default) or On |
| Transmitted Power |
20dBm ±1dBm |
| Waterproof Level |
IP69K |
| Viewing Angle |
斜对角大于100°(水平视角120°) |
| Transmitting Sensitivity |
11Mbps-86dBm@8% |
| Operation Temperature |
-20~+70 ºC |
| Storage Temperature |
-30~+85 ºC |
| Materials of Shell |
Aluminum Alloy(Black color) |
| Outline Dimension |
|
| Weight |
0.35KG |
